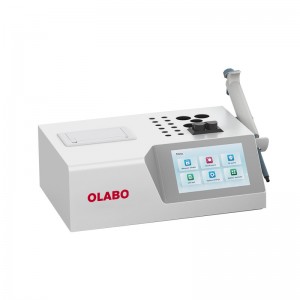

OLABO Clinical Touch Screen Clinical Blood Coagulation Analyzer
1. Dual-channel independent detection, can analyze different items at the same time.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
2. 5-inch high-definition touch screen, easy to operate.
3. Open system, good compatibility, Supports reagents of various specifications.
4. 20,000 results storage.
5. Equipped with multiple pre-temperature positions to improve detection efficiency.
6. Built-in thermal printer.
Specification
|
Model
|
BK-CA02
|
|
Test Principle
|
Optical Colorimetry
|
|
Test Items
|
PT,APTT,TT,FIB
|
|
Test Channel
|
2(can test different projects at the same time)
|
|
Wavelength
|
470nm
|
|
Detection Time
|
Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds
|
|
Sample Incubation Position
|
12
|
|
Reagent Incubation Position
|
5
|
|
Detection Position Temperature
|
37.0±1.0℃
|
|
Incubation Position Temperature
|
37.0±1.0℃
|
|
lncubation Time
|
1-999s
|
|
Reaction Time
|
1-99s
|
|
Reagent Dosage
|
Minimum dosage 20μl
|
|
Sample Volume
|
20μl~40μl
|
|
Display
|
5-inch high-definition color touch screen
|
|
Storage
|
20,000 results storage, automatically save measurement data when power off
|
|
Display
|
7-inch color LCD touch screen
|
|
Communication Interface
|
RS232 serial interface, support LlS system
|
|
Printer
|
Built-in thermal printer
|
|
Power Supply
|
AC100~240V,50/60Hz
|
|
Consumption
|
70VA
|
|
Ambient Temperature
|
10℃~30℃
|
|
Relative Humidity
|
≤80%
|
|
Atmospheric Pressure
|
86kPa~106kPa
|
|
External Size (W* D*H)
|
360*210*120mm
|
|
Net Weight
|
3.5kg
|
|
Package Size (W*D*H)
|
376*246*316mm
|

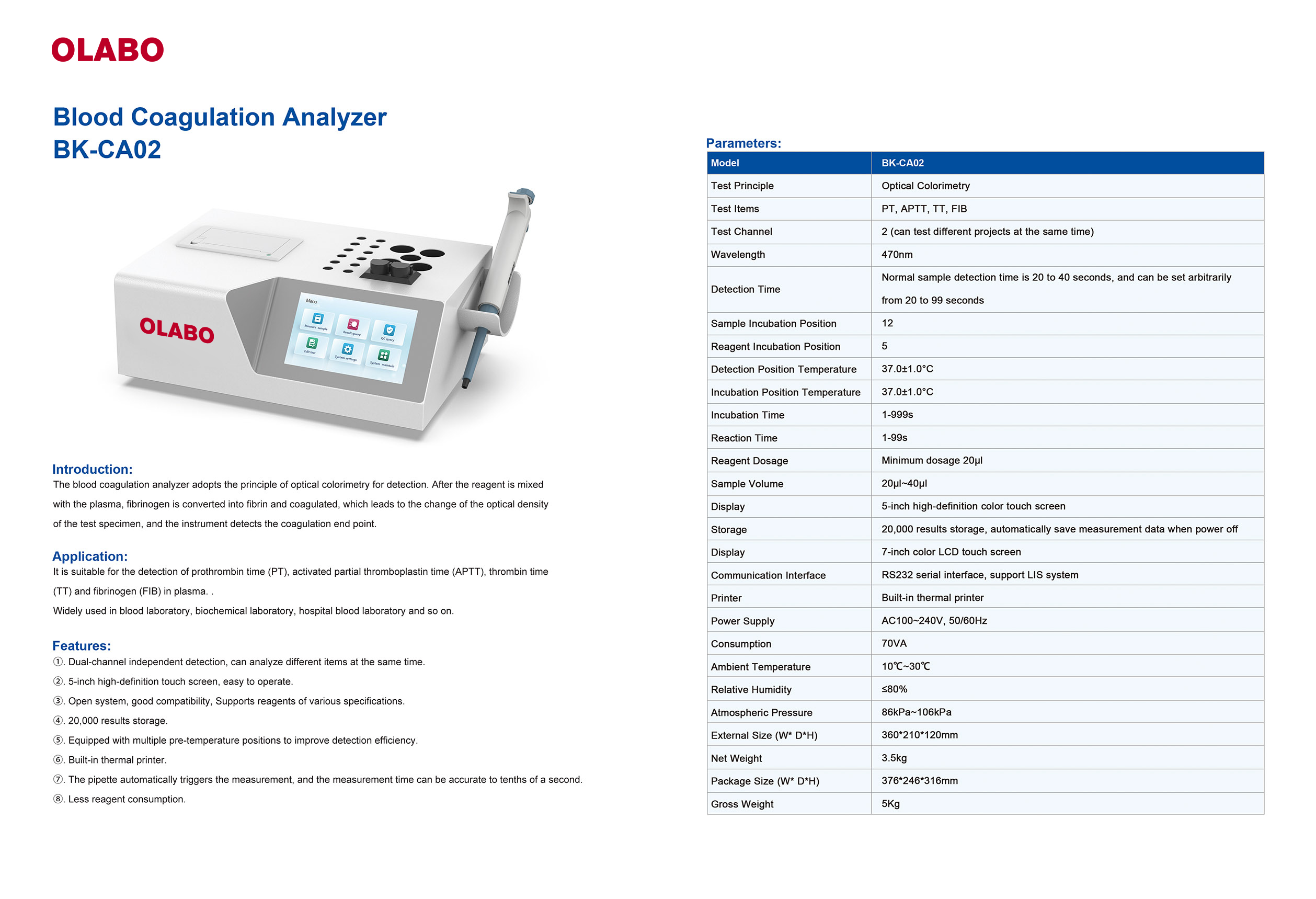

Downloads: Blood Coagulation Analyzer BK-CA02
