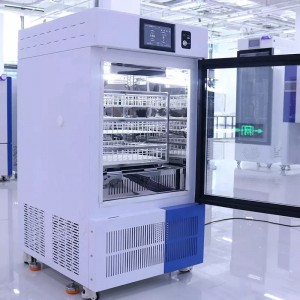

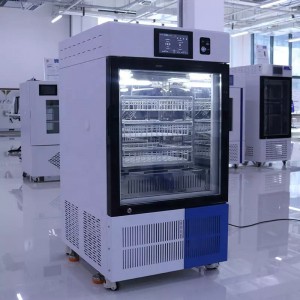

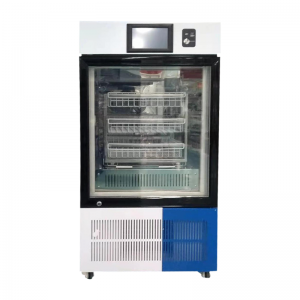

OLABO CHINA Platelet Incubator BJPX-SP10 With Microprocessor control system and LCD display for Lab

Short Description:


Product Detail

Product Tags

Applications:

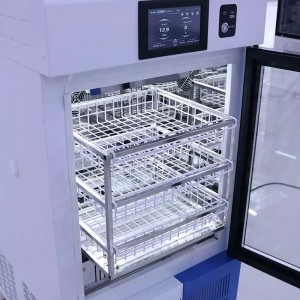

After thawing, platelets need to be kept swinging in a constant temperature environment of 20℃-24℃ while waiting for infusion to patients. The BIPXSP10 platelet incubator is a device made according to this requirement. When the thawed platelets are placed on the inner chamber storage shelf, the machine can continuously output the continuous left-right reciprocation with the amplitude of 50mm and the frequency of 60rpm, and the horizontal oscillation is achieved, which solves the problem of safe storage of platelets.

Features:

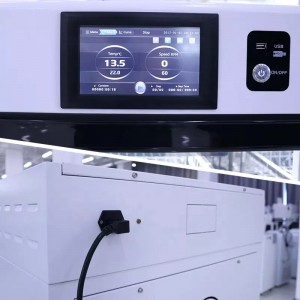

Microprocessor control system, LCD display
UV lamp for disinfection, the interlock for UV lamp and door

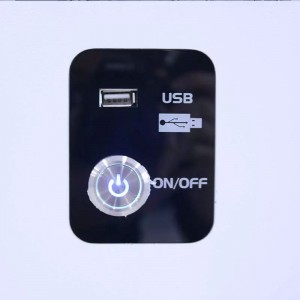

Power on/off switch, more convenient for operation
High efficiency refrigeration system, fast cooling speed and uniformity temperature inside
Double-layer glass observation window, filled with gas, to ensure the cooling performance
Alarm for high/low temperature, door ajar, etc.
Technical Parameters:
Model
BJPX-SP10
Layer/Bag Qty
3pcs/12pcs
Temp. Range
22.0℃±2.0℃
Oscillation Frequency
60.0rpm±5.0rpm
Temp. Uniformity
±2.0℃
Fluctuation
±1.0℃
Resolution
0.1℃
Amplitude
50.0mm±5.0mm
Refrigerant
R134a, CFC free
Oscillation Type
Continuous reciprocating (left and right) horizontal oscillation
Power Supply
Standard:AC220V,50/60Hz, optional: 110V, 50/60Hz
Power
1300W
External Size
645*730*1225mm
Net Weight
138kg
Packing Size
757*853*1315mm
Gross Weight
158kg
Blood Bag Storage Details:
Blood Bag Volume
Blood Bag Size(mm)
Max Storage-Stacked(pcs)
Suggested Storage(pcs)
25ml
70*60
162
81
50ml
80*70
120
60
100ml
110*90
66
33
200ml
140*110
42
21
300ml
160*110
36
18
400ml
190*120
30
15
500ml
200*120
24
12
