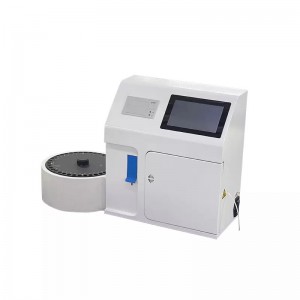

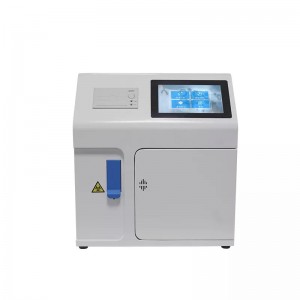

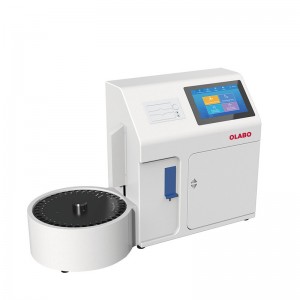

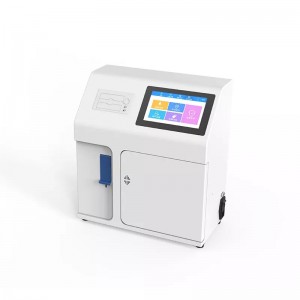

OLABO China Electrolyte Analyzer BKE Series BKE-A

Short Description:

Features:

●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency

Product Detail

Brochures

Product Tags

Features:

●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
Technical Parameters:
Model
BKE Series
Sample
Serum, plasma, whole blood, cerebrospinal fluid and dilute urine
Measuring Speed
≤25s
Analysis Method
Ion selective electrode (ISE)
Sample Volume
60~150ul
Sample Position
30 sample positions, 5 emergency positions, 2  positions
Injection mode
Manual or automatic injection can be selected
Storage
Up to 50,000 test results
Printer
Build-in thermal printer
Interface
RS232 port for LIS
Display
7-inch high-definition touch screen
Language
Chinese and English, other languages can be customized
Calibration
Automatic and Manual calibration
Other Function
Sample volume detection
Power Supply
AC110~240V,50/60Hz, 100W
Temperature
10~30℃
Relative Humidity
≤ 80 %
Atmospheric Pressure
86~106 kPa
Items
Measuring Range
Resolution
K+
0.5-20.0mmol/L
0.01 mmol/L
Na+
15-200mmol/L
0.1 mmol/L
Cl-
15-200mmol/L
0.1 mmol/L
Ca2+
0.1-6.0mmol/L
0.01 mmol/L
pH
4-9pH
0.01 pH
Model
BKE-A
BKE-B
BKE-C
BKE-D
Test Items
K+, Na+, Cl-
K+, Na+, Cl-
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH

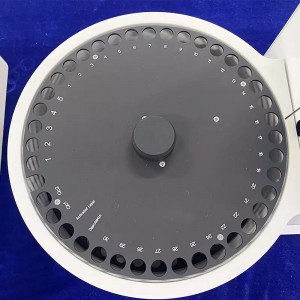

Sample Tray
No
Yes
No
Yes
External Size(W*D*H)
390*200*434mm
660*276*434mm
390*200*434mm
660*276*434mm
Net Weight
8.2kg
11.9kg
8.2kg
11.9kg
Package Size(W*D*H)
500×390×530 mm
500×390×700 mm
500×390×530 mm
500×390×700mm
Gross Weight
13.8kg
18.4kg
13.8kg
18.4kg

  • Previous:
  • Next:

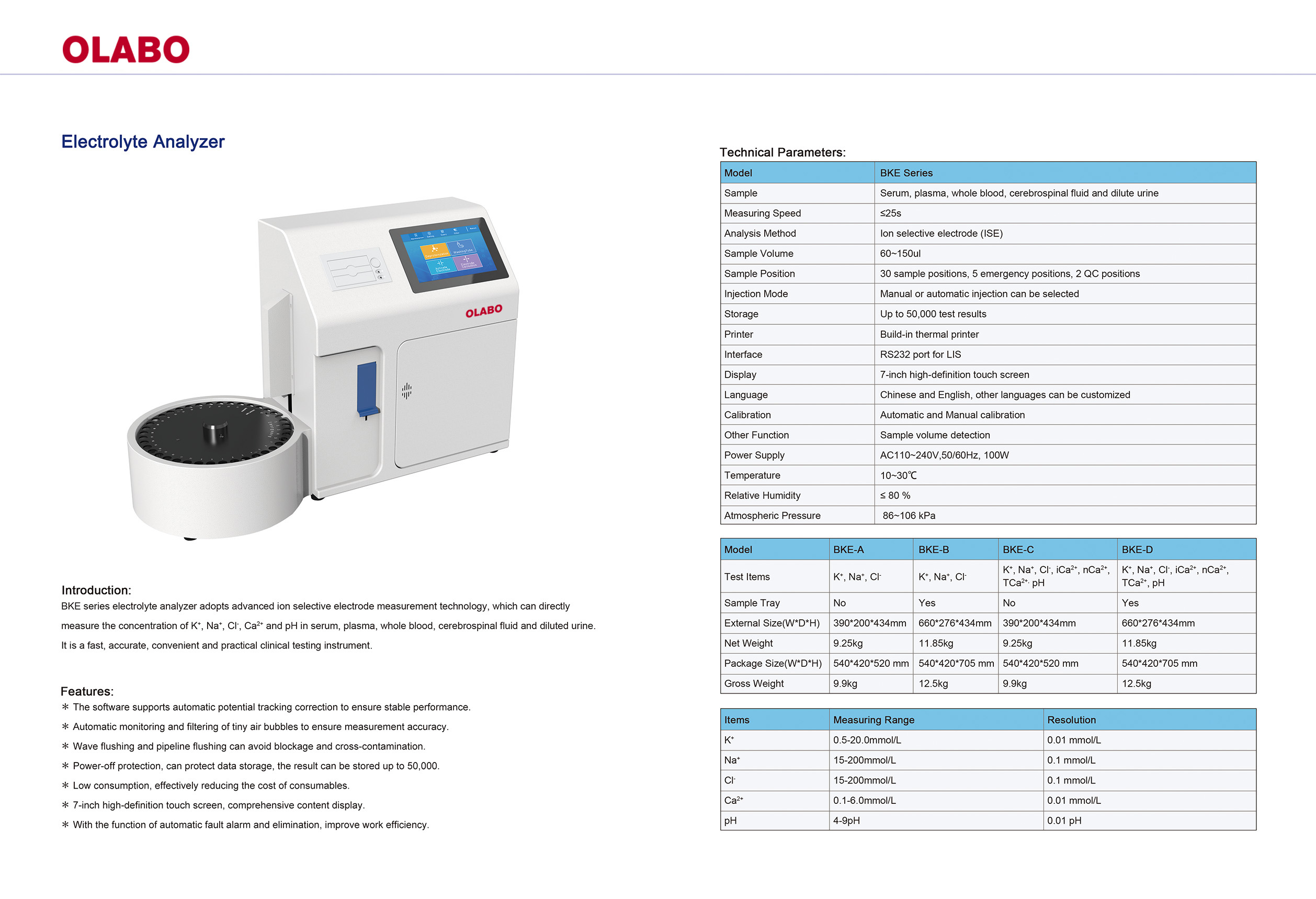

  • Downloads: BKE SeriesElectrolyte-Analyzer-BKE-Series
