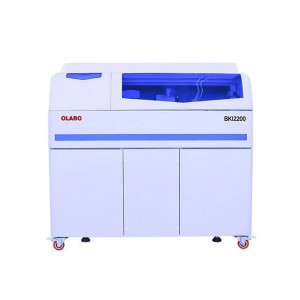

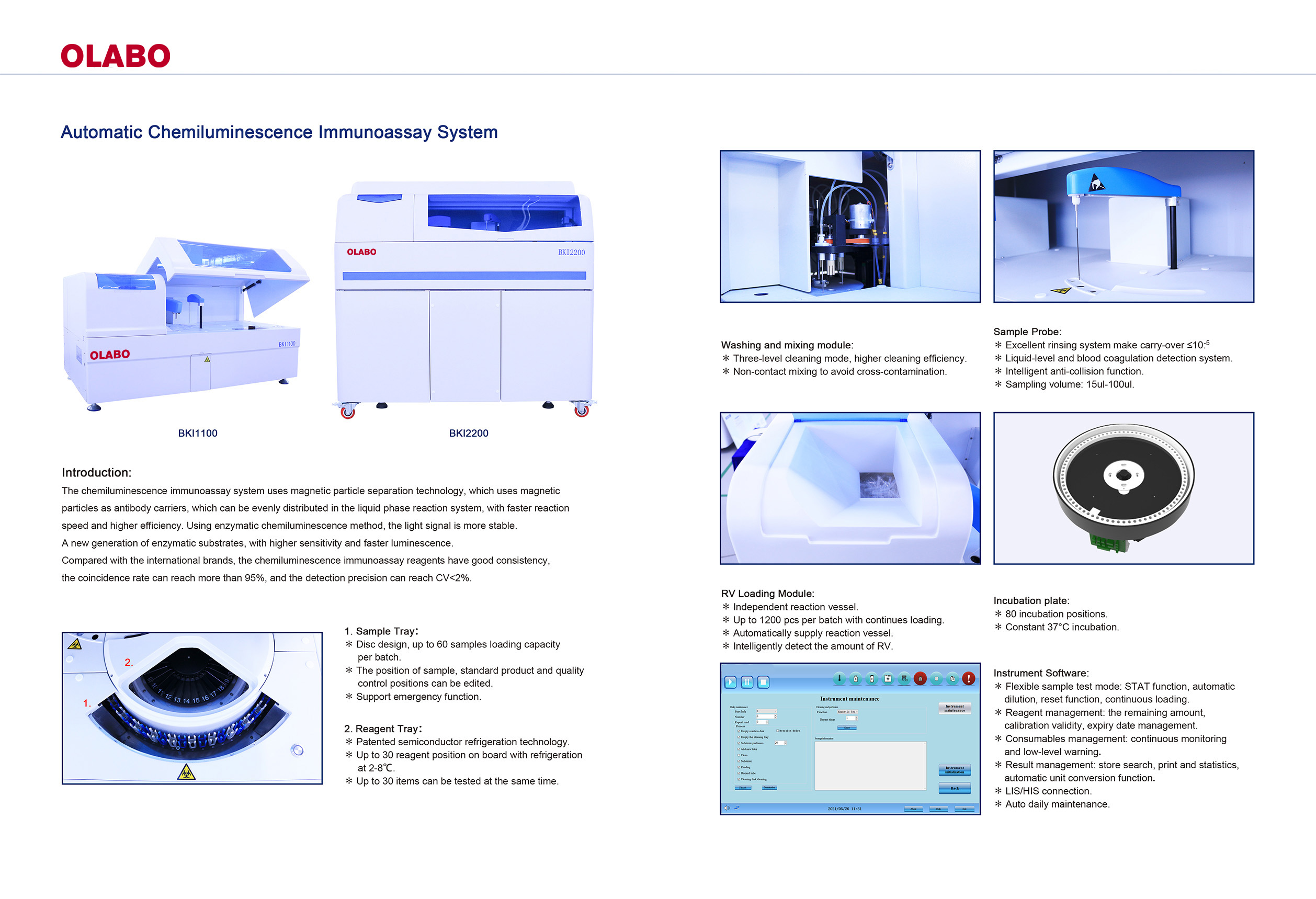

Olabo Automatic Chemiluminescence Immunoassay System

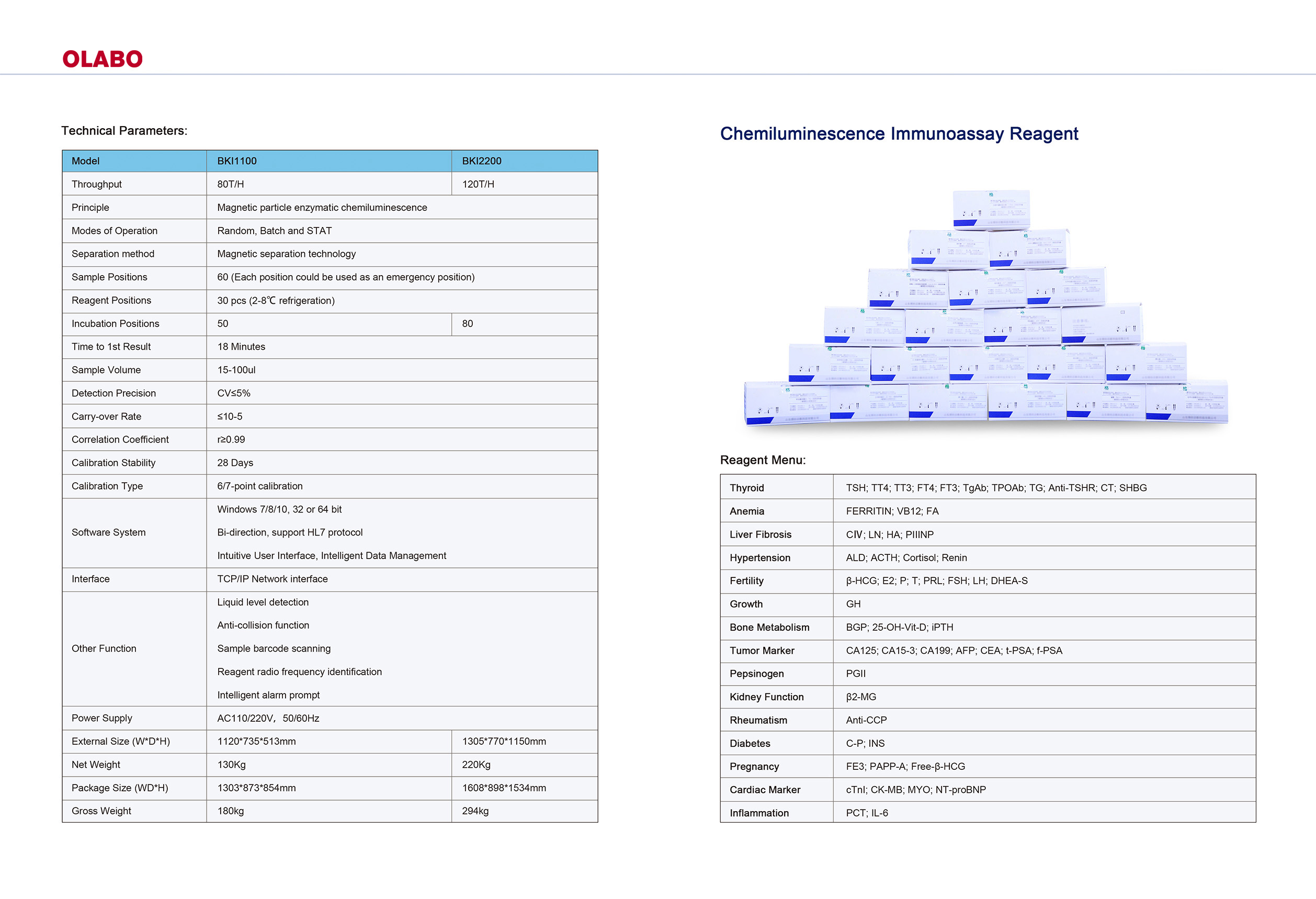

Parameter

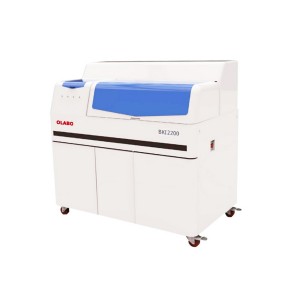

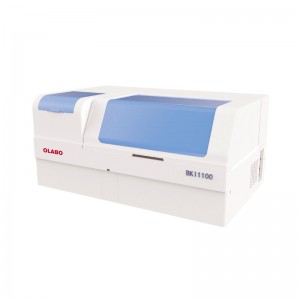

| Model | BKI1100 | BKI2200 |
| Throughput | 80T/H | 120T/H |
| Principle | Magnetic particle enzymatic chemiluminescence | |
| Modes of Operation | Random, Batch and STAT | |
| Separation method | Magnetic separation technology | |
| Sample Positions | 60 (Each position could be used as an emergency position) | |
| Reagent Positions | 30 pcs (2-8℃ refrigeration) | |
| Incubation Positions | 50 | 80 |
| Time to 1st Result | 18 Minutes | |
| Sample Volume | 15-100ul | |
| Detection Precision | CV≤5% | |
| Carry-over Rate | ≤10-5 | |
| Correlation Coefficient | r≥0.99 | |
| Calibration Stability | 28 Days | |
| Calibration Type | 6/7-point calibration | |
| Software system | Windows 7/8/10, 32 or 64 bit; Bi-direction, support HL7 protocol; Intuitive User Interface, Intelligent Data Management; |
|
| Interface | TCP/IP Network interface | |
| Other Function | Liquid level detection; Anti-collision function; Sample barcode scanning; Reagent radio frequency identification; Intelligent alarm prompt; |
|
| Power Supply | AC110/220V，50/60Hz | |
| External Size (W*D*H) | 1120*735*513mm | 1305*770*1150mm |
| Net Weight | 130Kg | 220Kg |
| Package Size (WD*H) | 1303*873*854mm | 1608*898*1534mm |
| Gross Weight | 180kg | 294kg |
Reagent Menu
| Thyroid | TSH; TT4; TT3; FT4; FT3; TgAb; TPOAb; TG; Anti-TSHR; CT; SHBG; | |
| Anemia | FERRITIN; VB12; FA | |
| Liver fibrosis | CIV; LN; HA; PIIINP | |
| Hypertension | ALD; ACTH; Cortisol; Renin | |
| Fertility | β-HCG; E2; P; T; PRL; FSH; LH; DHEA-S | |
| Growth | GH | |
| Bone Metabolism | BGP; 25-OH-Vit-D; iPTH | |
| Tumor marker | CA125; CA15-3; CA199; AFP; CEA; t-PSA; f-PSA | |
| Pepsinogen | PGII | |
| Kidney Function | β2-MG | |
| Rheumatism | Anti-CCP | |
| Diabetes | C-P, INS | |
| Pregnancy | FE3; PAPP-A; Free-β-HCG | |
| Cardiac marker | cTnI; CK-MB; MYO; NT-proBNP | |
| Inflammation | PCT; IL-6 | |
Sample Tray
Disc design, up to 60 samples loading capacity per batch
The position of sample, standard product and quality control positions can be edited
Support emergency function.
Reagent Tray
Patented semiconductor refrigeration technology
Up to 30 reagent position on board with refrigeration at 2-8℃
Up to 30 items can be tested at the same time.

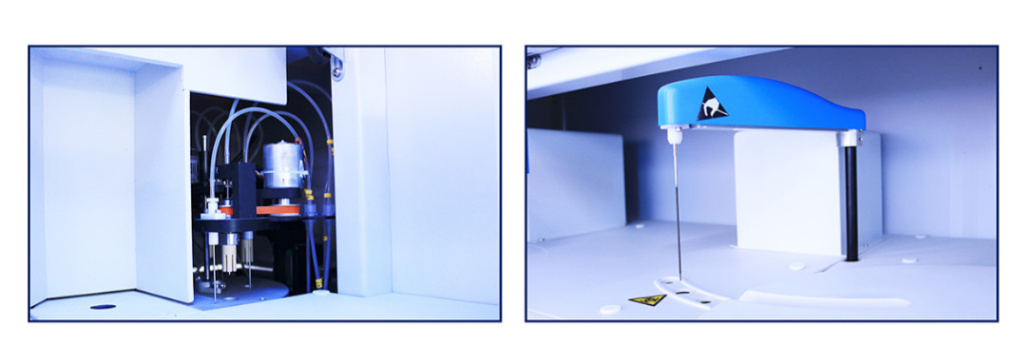

Washing and mixing module
Three-level cleaning mode, higher cleaning efficiency;
Non-contact mixing to avoid cross-contamination.
Sample Probe
Excellent rinsing system make carry-over ≤10-5
Liquid-level and blood coagulation detection system
Intelligent anti-collision function
Sampling volume: 15ul-100ul
RV Loading Module
Independent reaction vessel
Up to 1200 pcs per batch with continues loading
Automatically supply reaction vessel
Intelligently detect the amount of RV
Incubation plate
80 incubation positions
Constant 37°C incubation
Instrument Software
Flexible sample test mode: STAT function, automatic dilution, reset function, continuous loading
Reagent management: the remaining amount, calibration validity, expiry date management
Consumables management: continuous monitoring and low-level warning
Result management: store search, print and statistics, automatic unit conversion function
LIS/HIS connection
Auto daily maintenance
