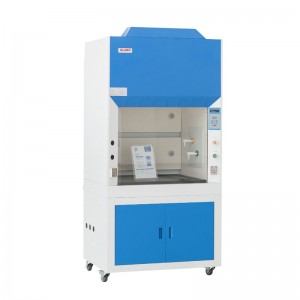

OLABO Manufacturer Ducted Fume-Hood (A) For Laboratory

Short Description:

Fume Hood is used to protect lab environment and operator during general chemical applications .It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.


Product Detail

Brochures

Product Tags

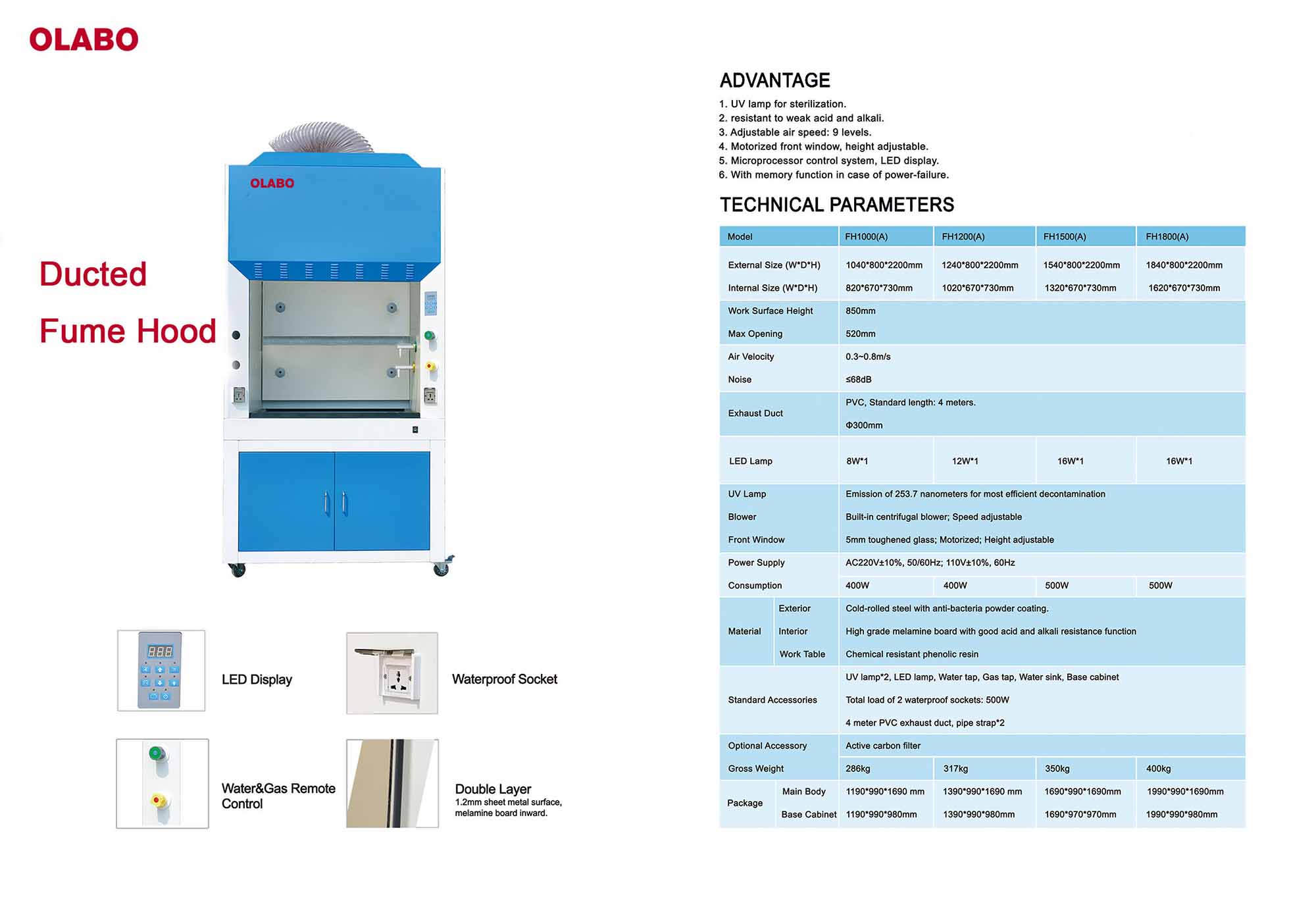

Parameter

Model FH1000(A) FH1200(A) FH1500(A) FH1800(A)
External Size (W*D*H) 1040*800*2200mm 1240*800*2200mm 1540*800*2200mm 1840*800*2200mm
Internal Size (W*D*H) 820*670*730mm 1020*670*730mm 1320*670*730mm 1620*670*730mm
Work Surface Height 850mm
Max Opening 520mm
Air Velocity 0.3~0.8m/s
Noise ≤68dB
Exhaust Duct PVC, Standard length: 4 meters.
Φ300mm
LED Lamp 8W*1 12W*1 16W*1 16W*1

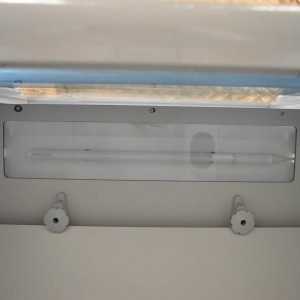

UV Lamp Emission of 253.7 nanometers for most efficient decontamination
Blower Built-in centrifugal blower; Speed adjustable.
Front Window 5mm toughened glass; Motorized; Height adjustable.
Power Supply AC220±10%, 50/60Hz; 110V±10%, 60Hz
Consumption 400W 400W 500W 500W
Material Exterior Cold-rolled steel with anti-bacteria powder coating.
Interior High grade melamine board with good acid and alkali resistance function
Work Table Chemical resistant phenolic resin

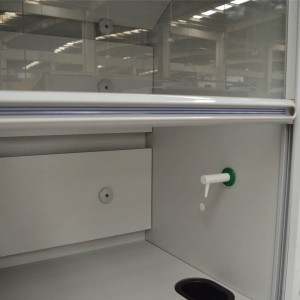

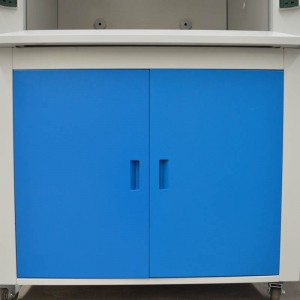

Stand Accessory UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet

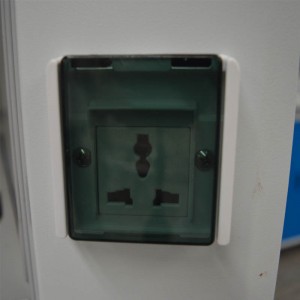

Total load of 2 waterproof sockets: 500W
4-meter PVC exhaust duct, pipe strap*2
Optional Accessory Active carbon filter
Gross Weight 286kg 317kg 350kg 400kg
Package Main Body 1190*990*1690 mm 1390*990*1690 mm 1690*990*1690mm 1990*990*1690mm
Base Cabinet 1190*990*980mm 1390*990*980mm 1690*970*970mm 1990*990*980mm

This product belongs to FH (A) series Fume Hood. Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter (optional) before exhausting through the duct. Thus, the outdoor environment could also be protected.

Advantage

- UV lamp for sterilization.

- Resistant to weak acid and alkali.

- Adjustable air speed: 9 levels

- Motorized front window, height adjustable.

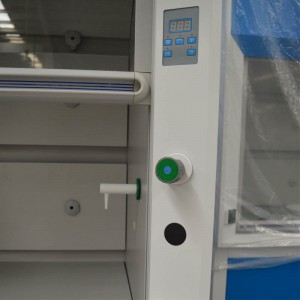

- Microprocessor control system, LED display.

- With memory function in case of power-failure.
