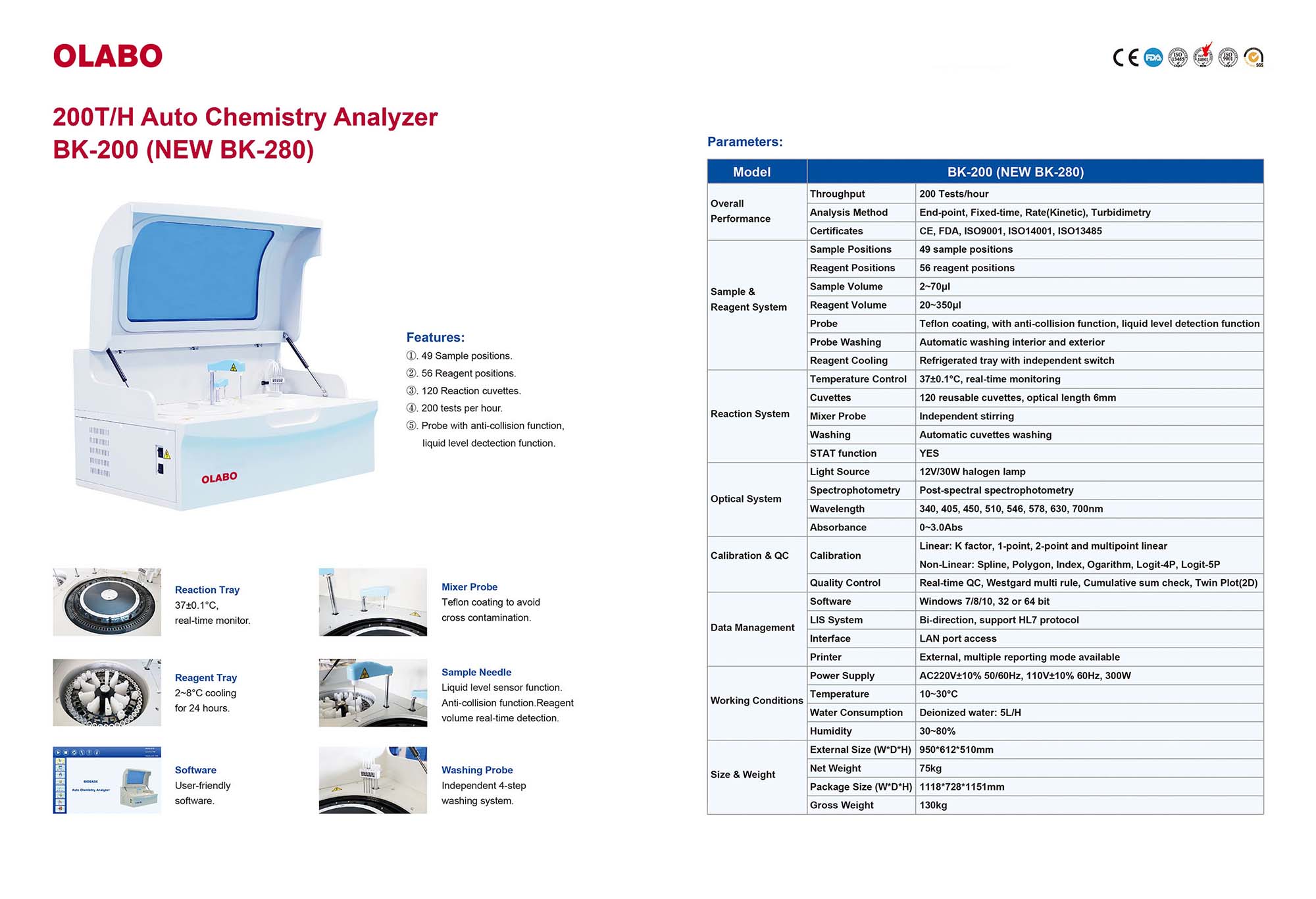

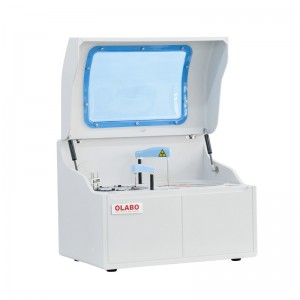

BK-200 (NEW BK-280) Auto Chemistry Analyzer

Short Description:

①. 49 Sample positions.

②. 56 Reagent positions.

③. 120 Reaction cuvettes.

④. 200 tests per hour.

⑤. Probe with anti-collision function, liquid level dectection function.

Product Detail


Product Tags

Model BK-280
Overall Performance Throughput 200Tests/Hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, ISO9001, ISO14001, ISO13485
Sample & Reagent Unit  Sample Positions 49 sample positions
Reagent Positions 56 reagent positions
Probewashing Automaticwashing interior and exterior
ReagentCooling Refrigerated tray with independent switch
Reaction System Temperature Control 37±0.1℃, real-time monitor
Cuvettes 120 reusable cuvettes,optical length 6mm
MixerProbe Independent stirring
Washing Automatic cuvettes washing
STAT function YES
Optical System Light Source 12V/30W halogen lamp
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340,405,450,510,546,578,630,700nm
Absorbance 0~3.0Abs
Calibration&QC Calibration Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P,Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D)
Data Management Software Windows 7/8/10, LIS system available
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
Printer External, multiple reporting mode available
Working Conditions Power Supply AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
Temperature 10~30℃
WaterConsumption Deionized water:5L/H
Humidity 30-80%
Size & Weight External Size (W*D*H) 950*612*510mm
Net Weight 75kg
Package Size(W*D*H) 1118*728*1151mm
Gross Weight 130kg

1. Reaction System
37±0.1℃, real-time monitor.

2. Mixer Probe
Teflon coating to avoid cross contamination.

3. Reagent Tray
2-8℃ cooling for 24 hours

4. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.

5. Software
User-friendly software.

6. Washing Probe
Independent 4-step washing system.
