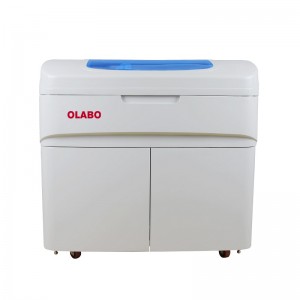

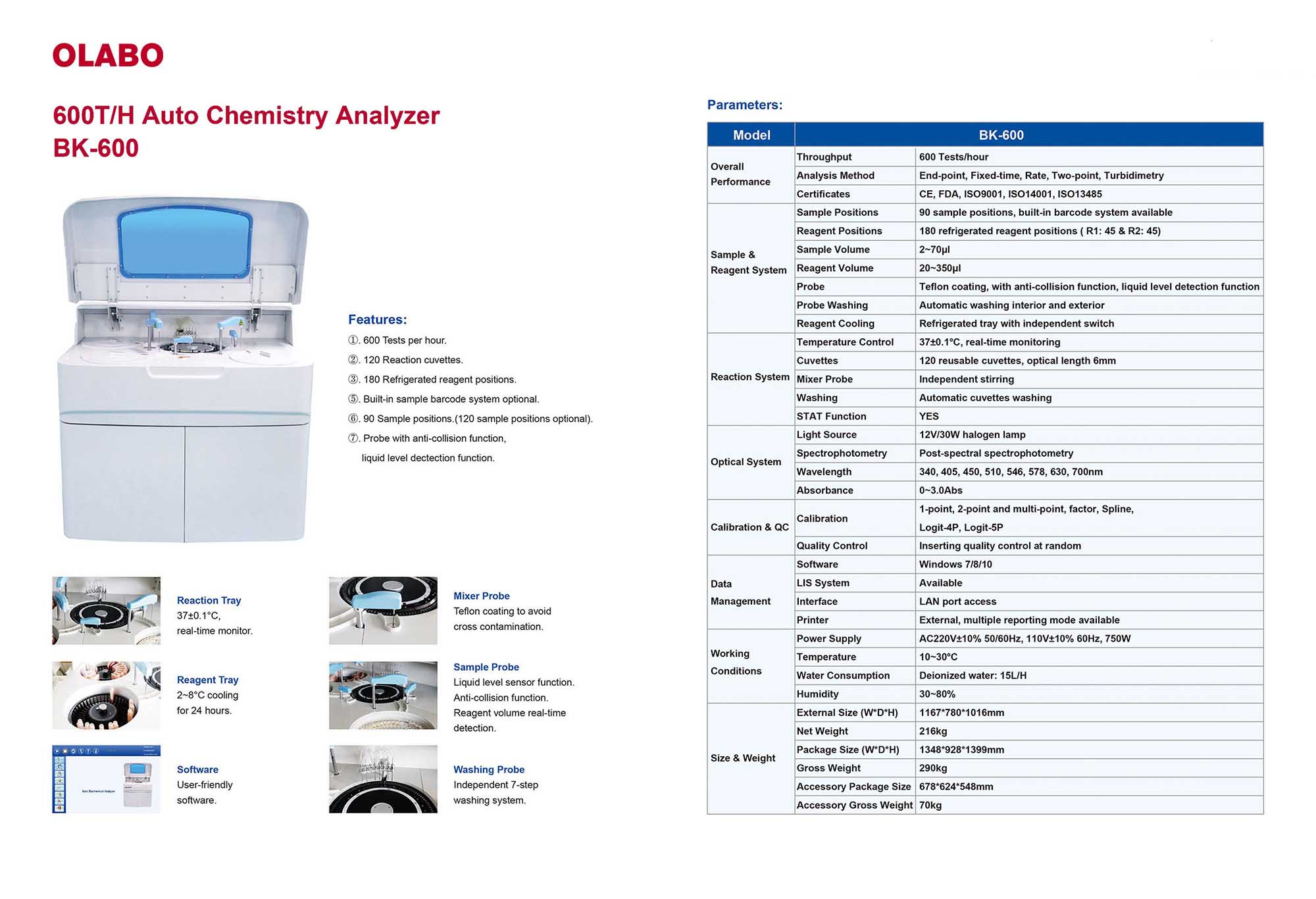

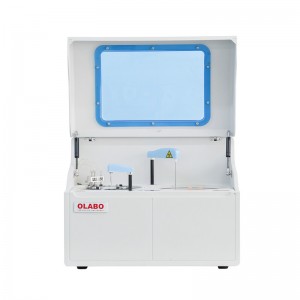

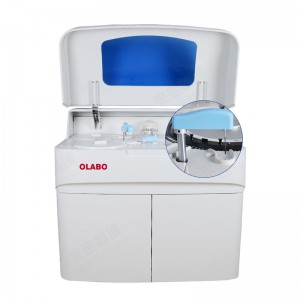

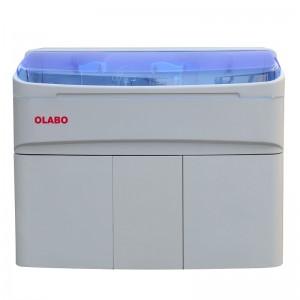

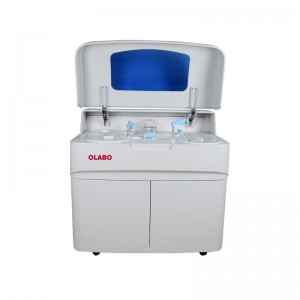

600T / H Auto Chemistry Analyzer BK-600
Parameter
| Model | BK-600 | |
| Overall Performance | Throughput | 600Tests/hour |
| Analysis Method | End-point, Fixed-time, Rate, Two-point, Turbidimetry | |
| Sample & Reagent System | Sample Positions | 90sample positions, built-in barcode system available |
| Reagent Positions | 180refrigerated reagent positions(R1:45 & R2:45) | |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | Teflon coating, with anti-collision function, liquid level detection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | 37±0.1℃, real-time monitoring |
| Cuvettes | 120reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/30W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340,405,450,510,546,578,630,700nm | |
| Absorbance | 0~3.0Abs | |
| Calibration & QC | Calibration | 1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P |
| Quality Control | Inserting quality control at random | |
| Data Management | Software | Windows 7/8/10 |
| LIS System | Available | |
| Interface | LAN port access | |
| Printer | External,multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
| Temperature | 10~30℃ | |
| Water Consumption | Deionized water:15L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 1167*780*1016mm |
| Net Weight | 216kg | |
| Package Size (W*D*H) | 1348*928*1399mm | |
| Gross Weight | 290kg | |
| Accessory Package Size | 678*624*548mm | |
| Accessory Gross Weight | 70kg | |
Advantages
1. Reaction Tray
37±0.1℃, real-time monitor.

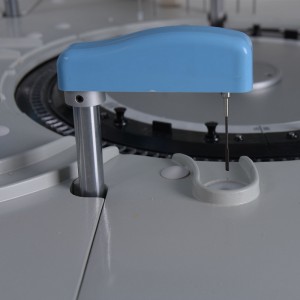

2. Mixer Probe
Teflon coating to avoid cross contamination.

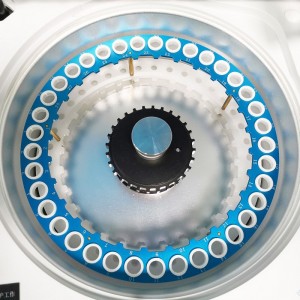

3. Reagent Tray
2-8℃ cooling for 24 hours.

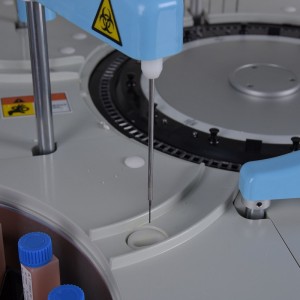

4. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.
5. Washing Probe
Independent 7-step washing system.
6. Software
User-friendly software.
