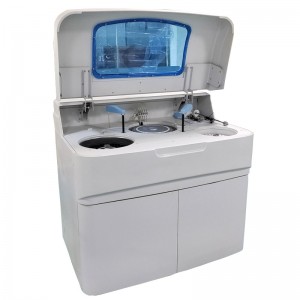

400T / H Auto Chemistry Analyzer BK-400

Short Description:

1. 400 tests per hour.

2. 90 Reagent positions.

3. 120 Reaction cuvettes.

4. Built-in sample barcode system optional.

5. 60 Sample positions(90 sample positions optional).

6. Probe with anti-collision function, liquid level detection function.

Product Detail


Product Tags


Model BK-400
Overall Throughput 400 Test/hour
Performance Analysis Method   End-point, Fixed-time, Rate(Kinetic), Turbidimetry
  Certification CE, ISO9001, ISO14001, ISO13485
  Sample Positions 60 or 90 sample positions, built-in barcode system available
Sample & Reagent System Reagent Positions 45 refrigerated reagent positions
  Sample Volume 2~70μl
  Reagent Volume 20~350μl
  Probe Teflon coating, with anti-collision function, liquid leveldetection function
  Probe Washing Automatic washing interior and exterior
  Reagent Cooling Refrigerated tray with independent switch
  Temperature Control 37±0.1℃, real-time monitoring
Reaction System Cuvettes 120reusable cuvettes, optical length 6mm
  Mixer Probe Independent stirring
  Washing Automatic cuvettes washing
  STAT function YES
Optical System Light Source 12V/30W halogen-tungsten lamp
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340, 405, 450,510, 546, 578, 630,700nm
Absorbance 0~3.0Abs
Calibration & QC Calibration Linear:K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management Software Windows 7/8/10, 32or 64bit
LIS System Bi-direction,support HL7 protocol
Interface LAN port access
Printer External,multiple reporting mode available
 Working Conditions Power Supply AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
Temperature 10~30℃
Water Consumption Deionized water:12L/H
Humidity 30-80%
Size & Weight External Size (W*D*H) 1167*780*1016mm
Net Weight 193kg
Package Size (W*D*H) 1348*928*1399mm
Gross Weight 267kg

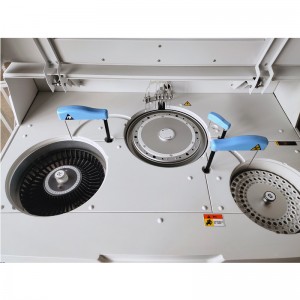

1. Reaction Tray
37±0.1℃, real-time monitor.

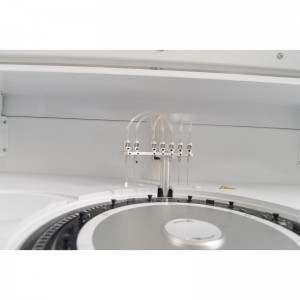

2. Mixer Probe
Teflon coating to avoid cross contamination.

3. Reagent Tray
2-8℃ cooling for 24 hours.

4. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.

5. Washing Probe
Independent 7-step washing system.

6. Software
User-friendly software.

  • Previous:
  • Next:

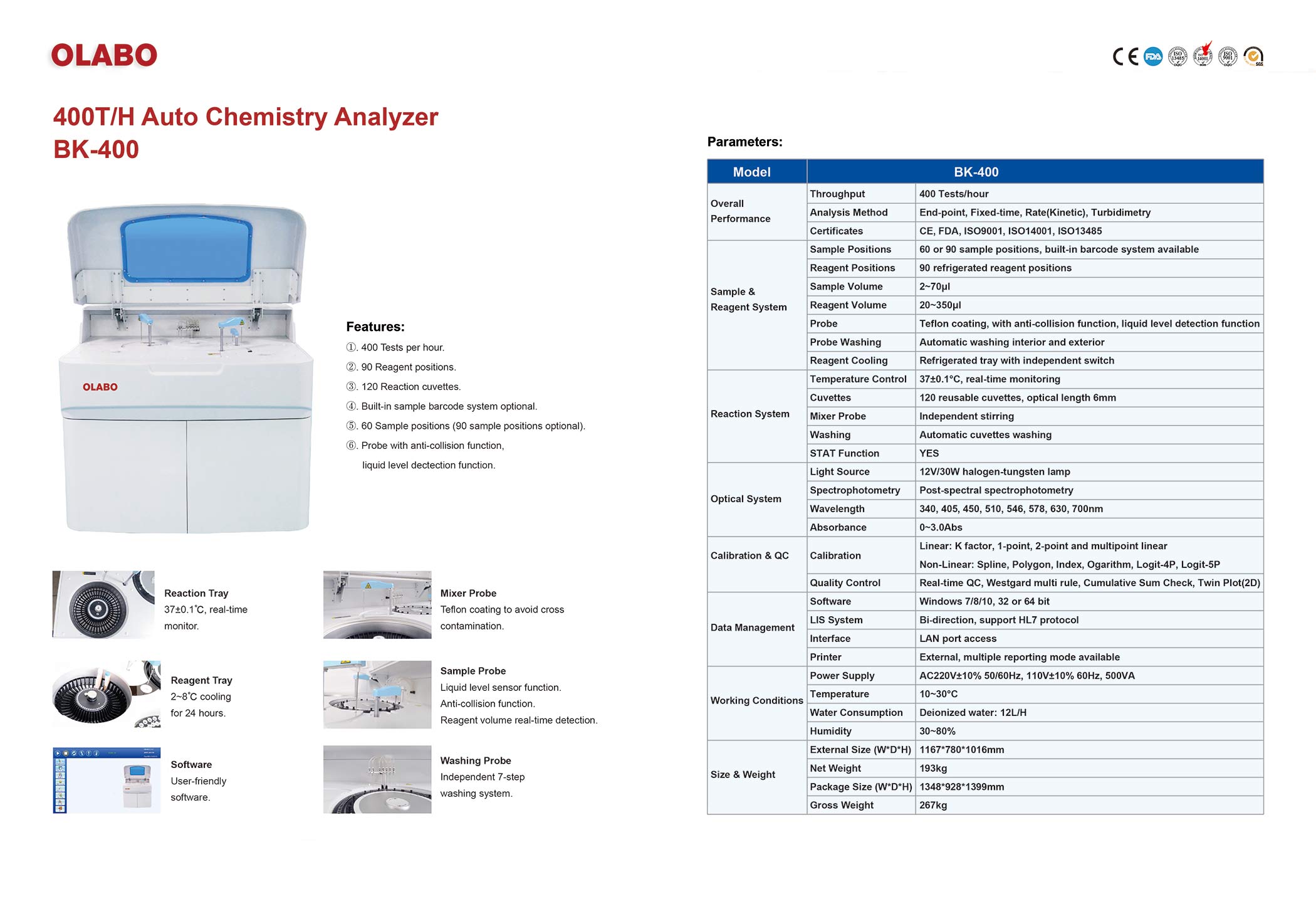

  • Download: BK400 Auto Chemistry Analyzer 400T / H Auto Chemistry Analyzer BK-400
