Special Design for Shaking Incubator Rpm - OLABO Hot Plate Magnetic Stirrer with CE – OLABO
Special Design for Shaking Incubator Rpm - OLABO Hot Plate Magnetic Stirrer with CE – OLABO Detail:
Parameter
| Model | SH-4A | SH-4B | SH-4 | SH-4C | SH-II-4C | |
| Mode | Heating | Stirring | Heating+Stirring | Digital+Heating+Stirring | ||
| Function | Max. Volume(ML) | 5000 | 5000 | 5000 | 5000 | 5000 |
| Speed(r.p.m) | - | 200～2000 | ||||
| Working time | Continuous | |||||
| Minimum revolution ( R.P.M.) | - | 200 | 200 | 200 | 200 | |
| Max. temp(℃) | 380 | - | 380 | 350 | 350 | |
| Structure | Exterior | Iron plate welding, surface spraying | ||||
| Heating plate | Ceramic Coated | |||||
| Driving mode | - | Motor | ||||
| Motor power(W) | - | 20 | 20 | 20 | 20 | |
| Heating power(kW) | 0.6 | - | 0.6 | 0.6 | 0.6 | |
| Stir bar | no | PTFE | ||||
| Controller | Continuous | yes | ||||
| Operation | ||||||
| Setting mode | Scale | Digital | ||||
| Speed display | Scale | Digital | Digital | |||
| Mode | ||||||
| Timer | no | yes | ||||
| Operation function | no | yes | ||||
| Sensor | no | PT100 | PT100 | |||
| Specification | Exterior size(W*L*H)(mm) | 320*190*125 | ||||
| Packing size(W*L*H)(mm) | 390*240*230 | |||||
| Plate size(mm) | 190*190 | |||||
| Plate load | 10KG | |||||
| Power supply(50/60Hz) | 110V or 220V | |||||
| NW/GW (kg） | 5/6 | 5/6 | 5/6 | 5/6 | 5/6 | |
Advantage
1.Stretched shell and cover prevent leaking.
2. Heating and stirring can proceed simultaneously.
New digital model SH-II-4C, Ceramic Magnetic Stirrer with the following function:
SH-4C
1. Setting temperature precisely.And stirring speed stepless adjustable.
2. Large LCD display,temperature and rotate speed can be displayed simultaneously.
3. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
4.K mode sensor to control hot plate temperature.
SH-II-4C
1.Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.
2.With speed switch to start or stop stirring at any time.
3. Timing function (0-9999min), time adjustable under artficial requirement. Audible and visual alam equipped.
4. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
5. One key to shift inside and outside sensor easily and precisely.
6.Large screen LCD display can indicate temperature, rotational speed and timing at the same time.

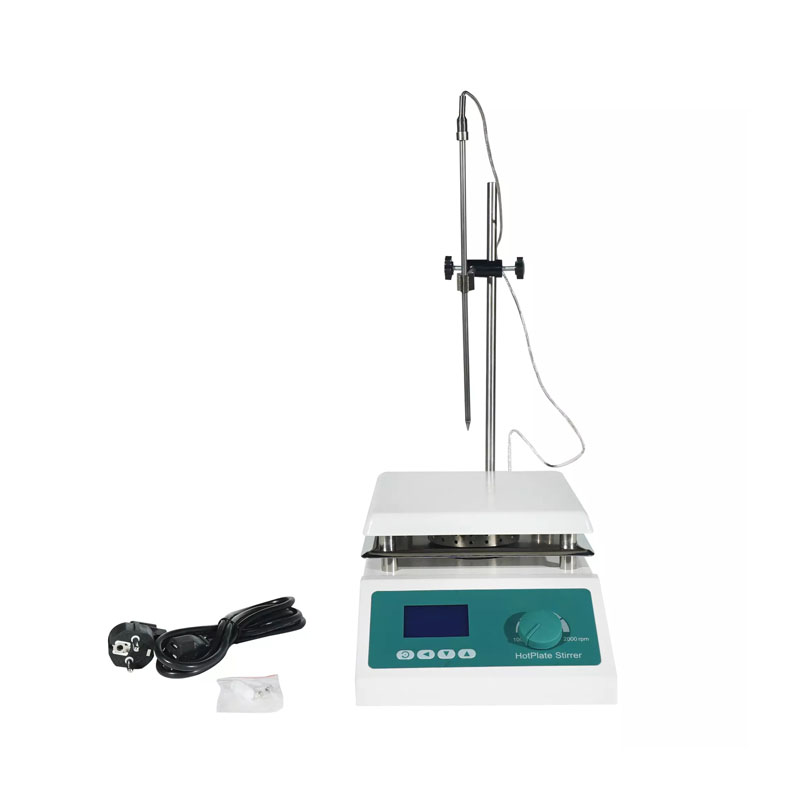

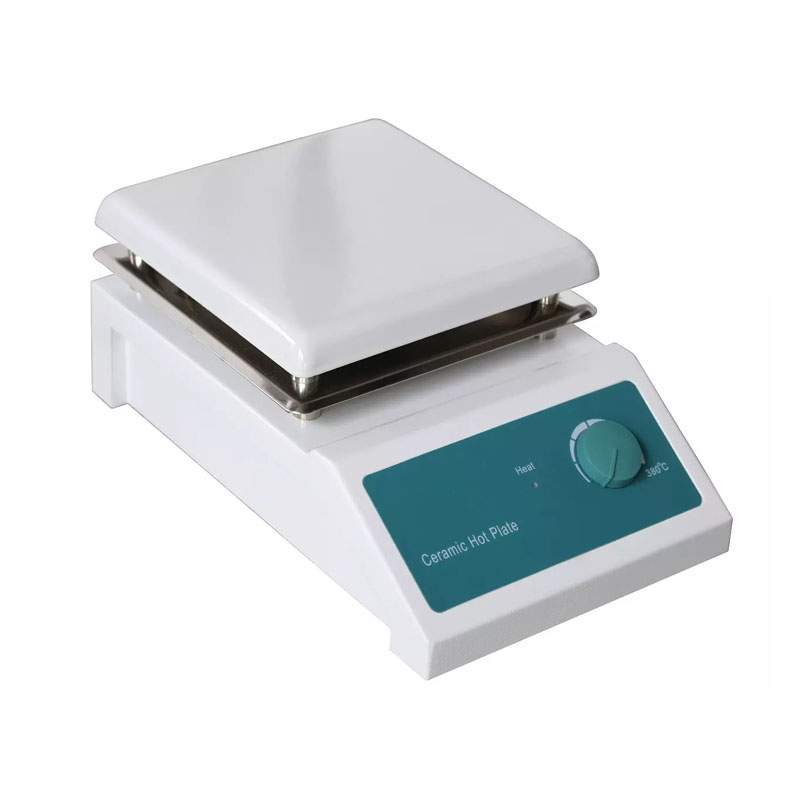

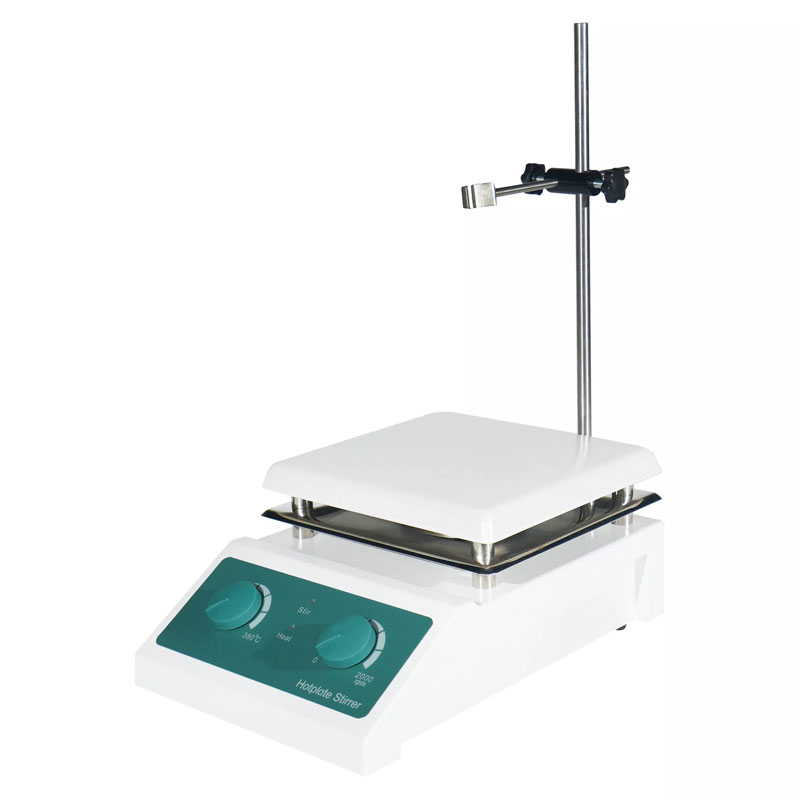

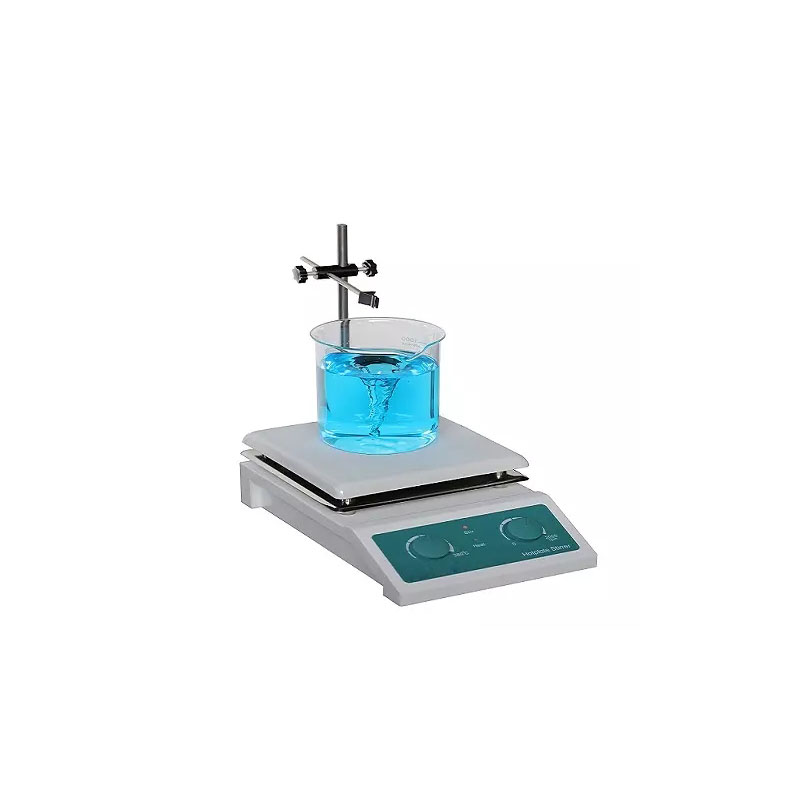

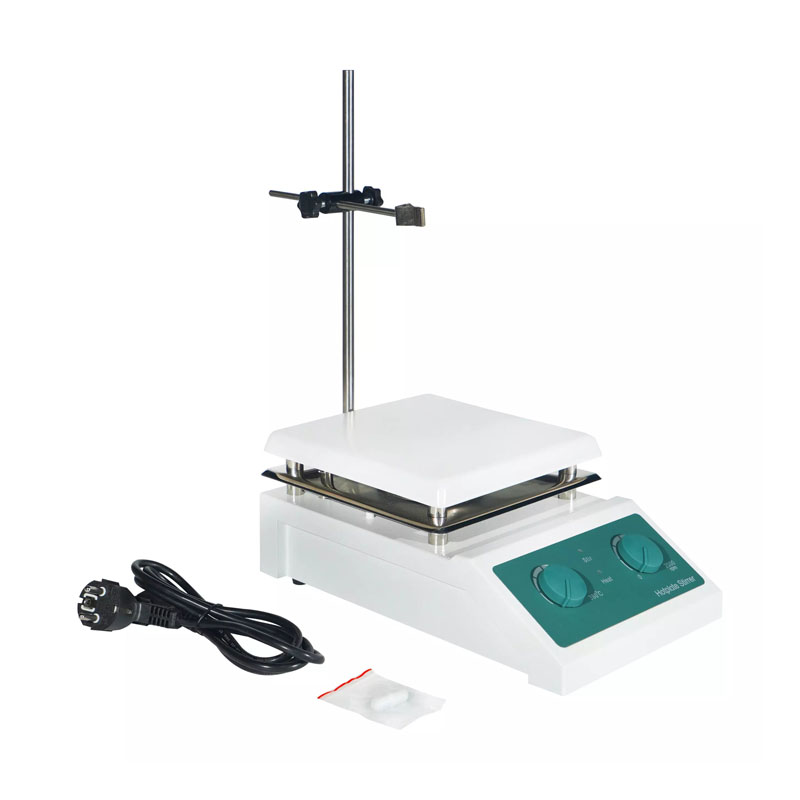

Product detail pictures:
