OLABO Class I Biological Safety Cabinet

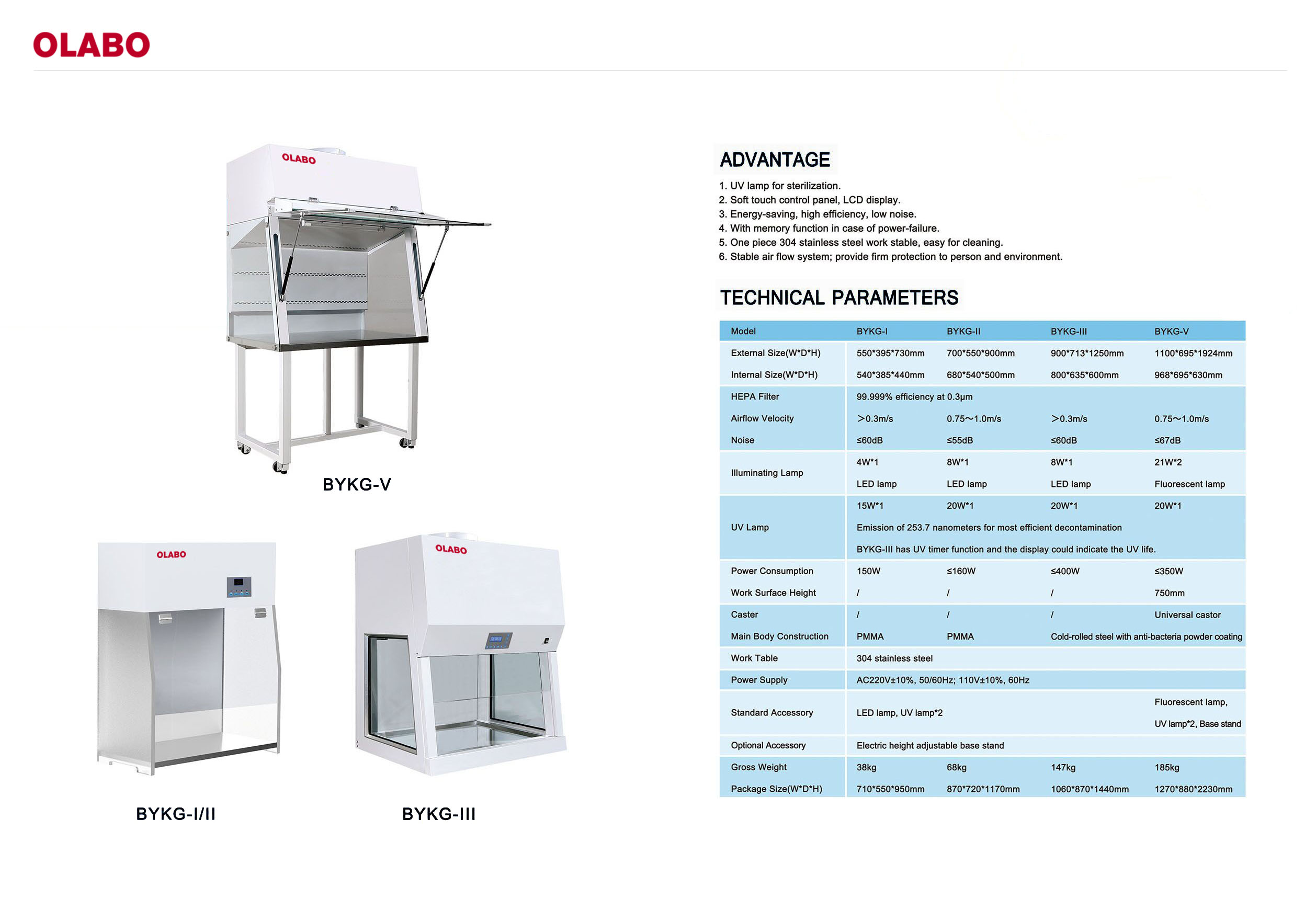

Parameter
| Model | BYKG-I | BYKG-II | BYKG-III | BYKG-V | |
| External Size(W*D*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*695*1924mm | |
| Internal Size(W*D*H) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*695*630mm | |
| HEPA Filter | 99.999% efficiency at 0.3 μm | ||||
| Airflow Velocity | >0.3m/s | 0.75~1.0m/s | >0.3m/s | 0.75-1.0m/s | |
| Noise | ≤60dB | ≤55dB | ≤60dB | ≤67 dB | |
| Illuminating Lamp | 4W*1 | 8W*1 | 8W*1 | 21W*2 | |
| LED Lamp | LED Lamp | LED Lamp | Fluorescent lamp | ||
| UV Lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 | |
| Emission of 253.7 nanometers for most efficient decontamination | |||||
| BYKG-III has UV timer function and the display could indicate the UV life. | |||||
| Power Consumption | 150W | ≤160W | ≤400W | ≤350W | |
| Work Surface Height | / | / | / | 750mm | |
| Caster | / | / | / | Universal caster | |
| Main Body Construction | PMMA | Cold-rolled steel with anti-bacteria powder coating | |||
| Work Table | 304 stainless steel | ||||
| Power Supply | AC220V±10% , 50/60Hz; 110V±10% ,60Hz | ||||
| Standard Accessory | LED lamp, UV lamp*2 | Fluorescent lamp, UV lamp*2, Base stand | |||
| Optional Accessory | Electric height adjustable base stand | ||||
| Gross Weight | 38kg | 68kg | 147kg | 185kg | |
| Package Size(W*D*H) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1270*880*2230mm | |
Features
1. UV lamp for sterilization.
2. Soft touch control panel, LCD display.
3. Energy-saving, high efficiency, low noise.
4. With memory function in case of power-failure.
5. One piece 304 stainless steel work stable, easy for cleaning.
6. Stable air flow system; protecting to person and environment.
Download: Class I Biological Safety Cabinet
