OEM/ODM China Medical Freezers - Ultra Low Temperature Freezer – OLABO
OEM/ODM China Medical Freezers - Ultra Low Temperature Freezer – OLABO Detail:
Parameter
| Model | BDF-86V50 | BDF-86V158 | BDF-86V398 | BDF-86V598 | |
| External Size (W*D*H)mm | 600*665*1150 | 700*700*1580 | 850*960*1860 | 940*980*1920 | |
| Internal Size (W*D*H)mm | 361*405*410 | 460*455*800 | 550*630*1140 | 700*680*1255 | |
| Capacity | 50L | 150L | 398L | 598L | |
| Type | Vertical | ||||
| Temp.Range | -86ºC | ||||
| Temp. Accuracy | 0.1ºC | ||||
| Control System | Microprocessor control LED display | ||||
| Audio and Visual Alarm | High and low temperature | ||||
| Sensor failure | |||||
| Refrigeration Type | Direct refrigeration | ||||
| Refrigerant | Mixture refrigerant | ||||
| Construction | Structure | Unibody design & Mono-assembly foaming (Rigid polyurethane insulation material) | |||
| Internal Material | SS 304 | ||||
| External Material | Cold-rolled steel with anti-bacteria powder coating | ||||
| Door | Lockable door | ||||
| Caster | 4 casters | ||||
| Consumption | 350W | 480W | 580W | 900W | |
| Power Supply | AC110V/220V±10% 50/60Hz | ||||
| Package Size (W*D*H)mm | 670*735*1320 | 785*770*1750 | 935*1030*2030 | 1025*1050*2090 | |
| Net Weight | 78kg | 123kg | 200kg | 250kg | |
| Gross Weight | 98kg | 150kg | 250kg | 315kg | |
Features
Temperature Control
Microcomputer digital control temperature digital display adjustment unit is 0.1 degrees.
The temperature in the box is adjustable.
Temperature difference between start and stop can be set.
High and low temperature alarm function, the alarm temperature value can be set as required.
Safety System
It has a perfect alarm system, with buzzer sound and light flashing alarm.
It can realize high and low temperature alarm, sensor fault alarm and other functions.
Multiple protection functions (password protection starts frequently, and the refrigeration system remains in operation when the protection sensor fails).
Refrigeration System
Super thick foam layer, double-layer insulation door design, double sealing of door body, effectively protecting the temperature in the box.
Optimized self cascade refrigeration system, imported compressor, strong and effective refrigeration capacity.
Reasonable evaporator design ensures the most effective flow of refrigerant and good temperature uniformity in the box.
Single compressor system, less components, low failure rate and low energy consumption.
German EBM silent fan is adopted, with stable and lasting performance and low noise.
Fluorine free environment-friendly mixed refrigerant.
User Friendly Design
Built in stainless steel frame, flexible and convenient to use, easy to clean.
Food grade stainless steel liner, safe and secure.
Heavy duty caster design, easy to move.
The safety door lock is designed to prevent random opening.
The air pressure balance design in the box has the function of test hole at the same time, which is convenient to use.
The control part is designed for overhead installation, which is easy to operate.
LED temperature display, easy to observe, clear and intuitive.
Suitable for 10 ~ 30 degree environment.
Wide voltage band design, suitable for 187v ~ 242v voltage.

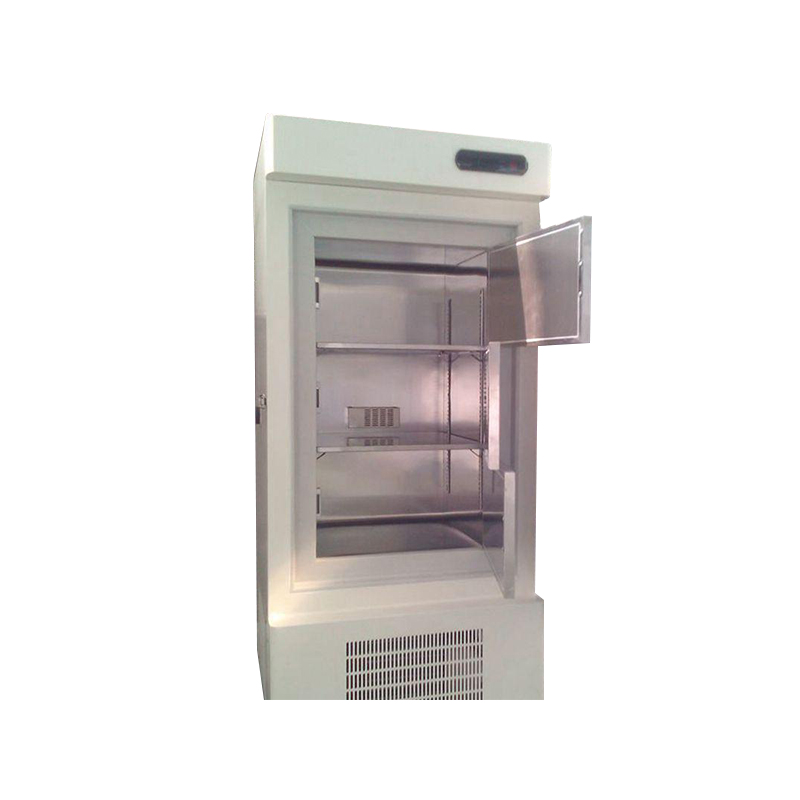

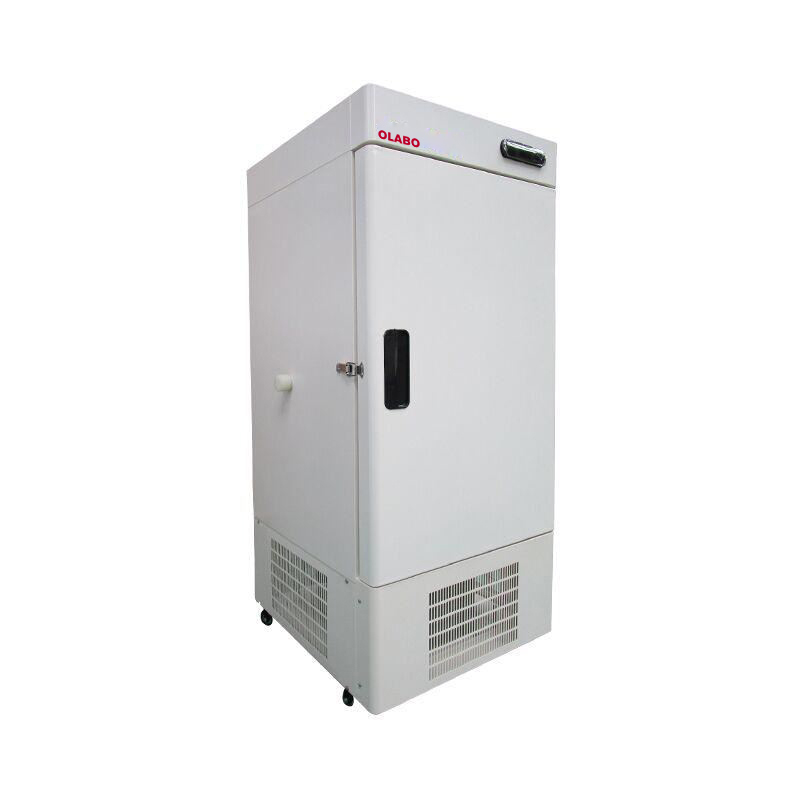

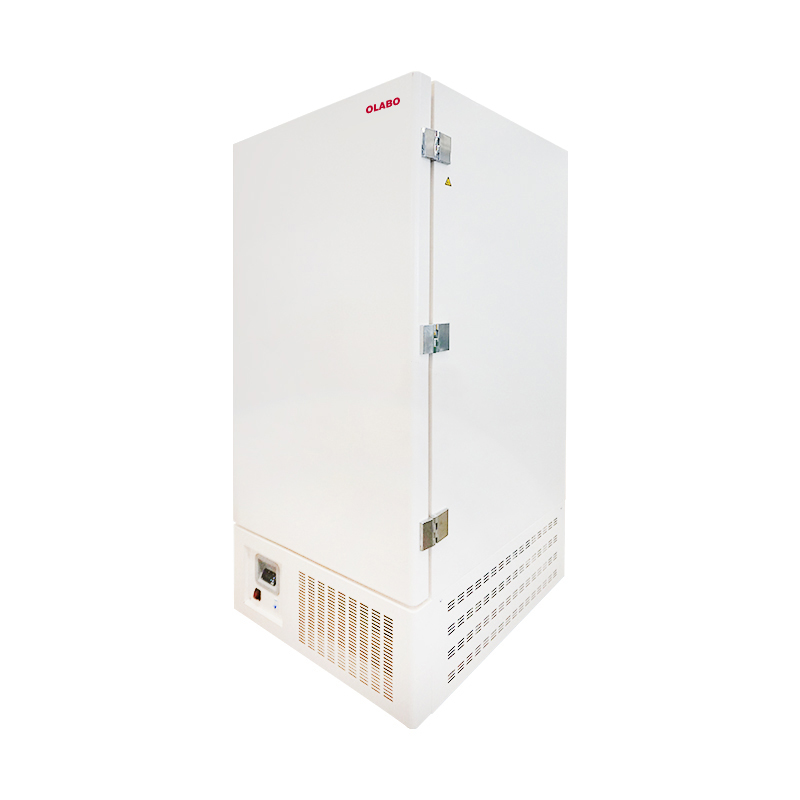

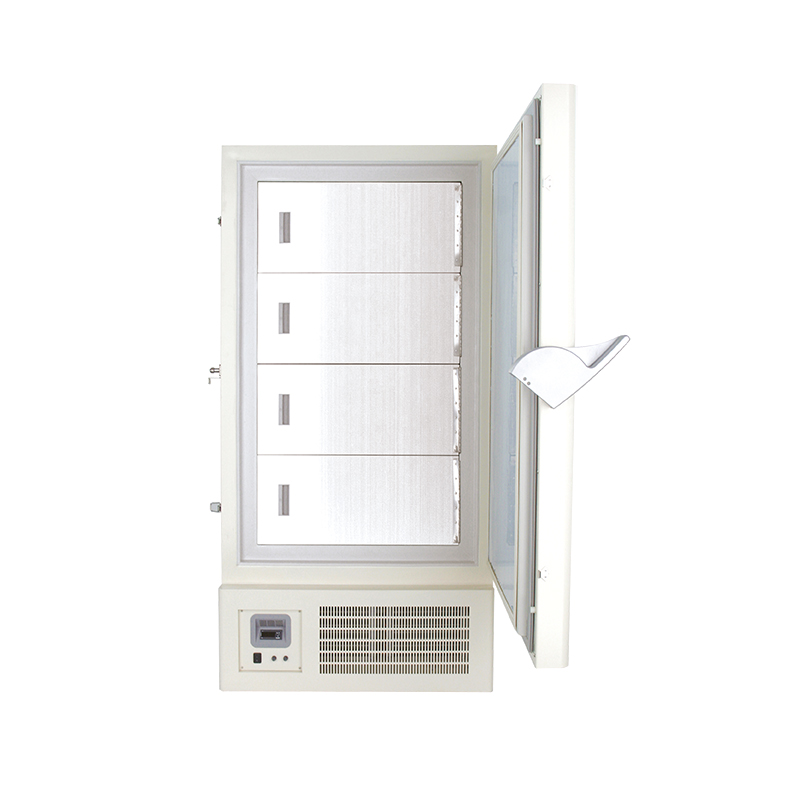

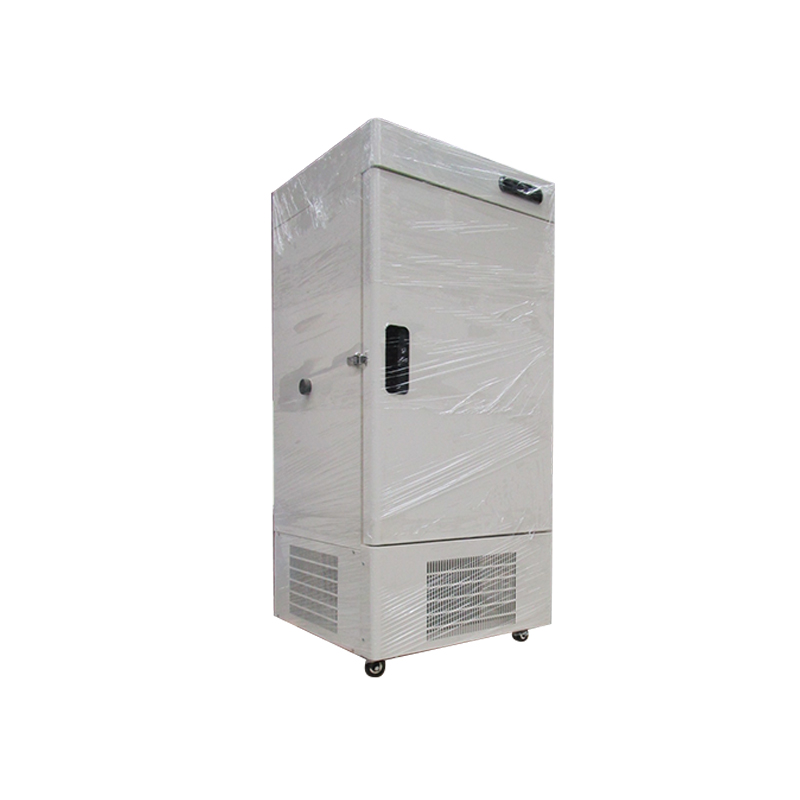

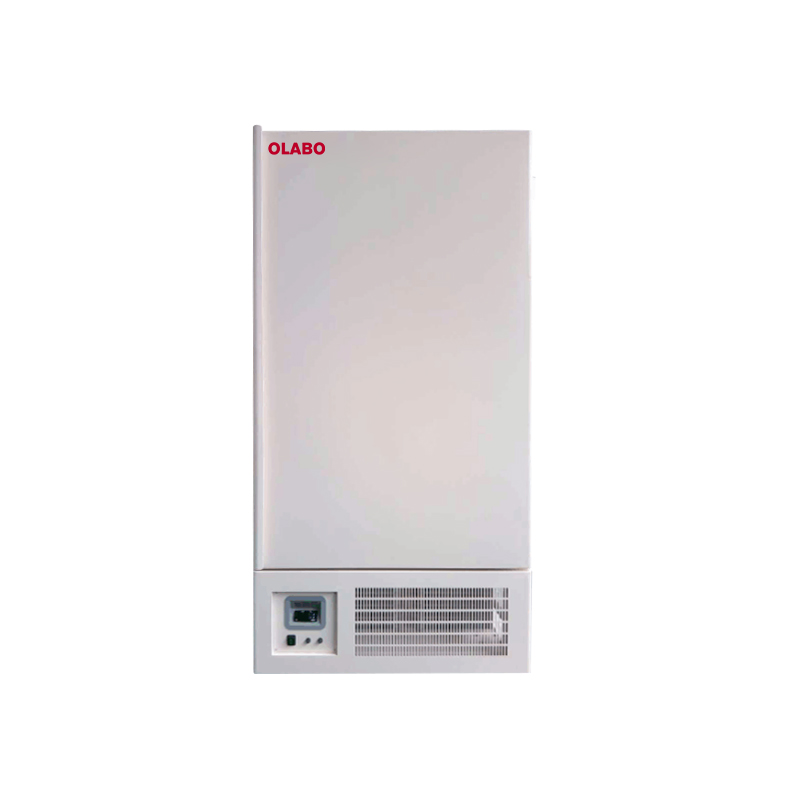

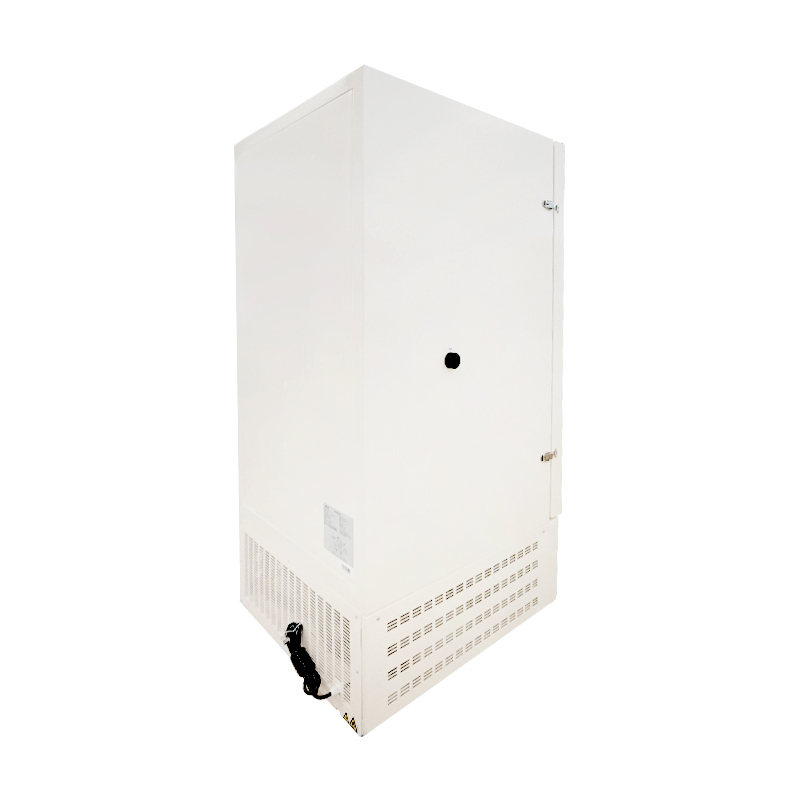

Product detail pictures:
