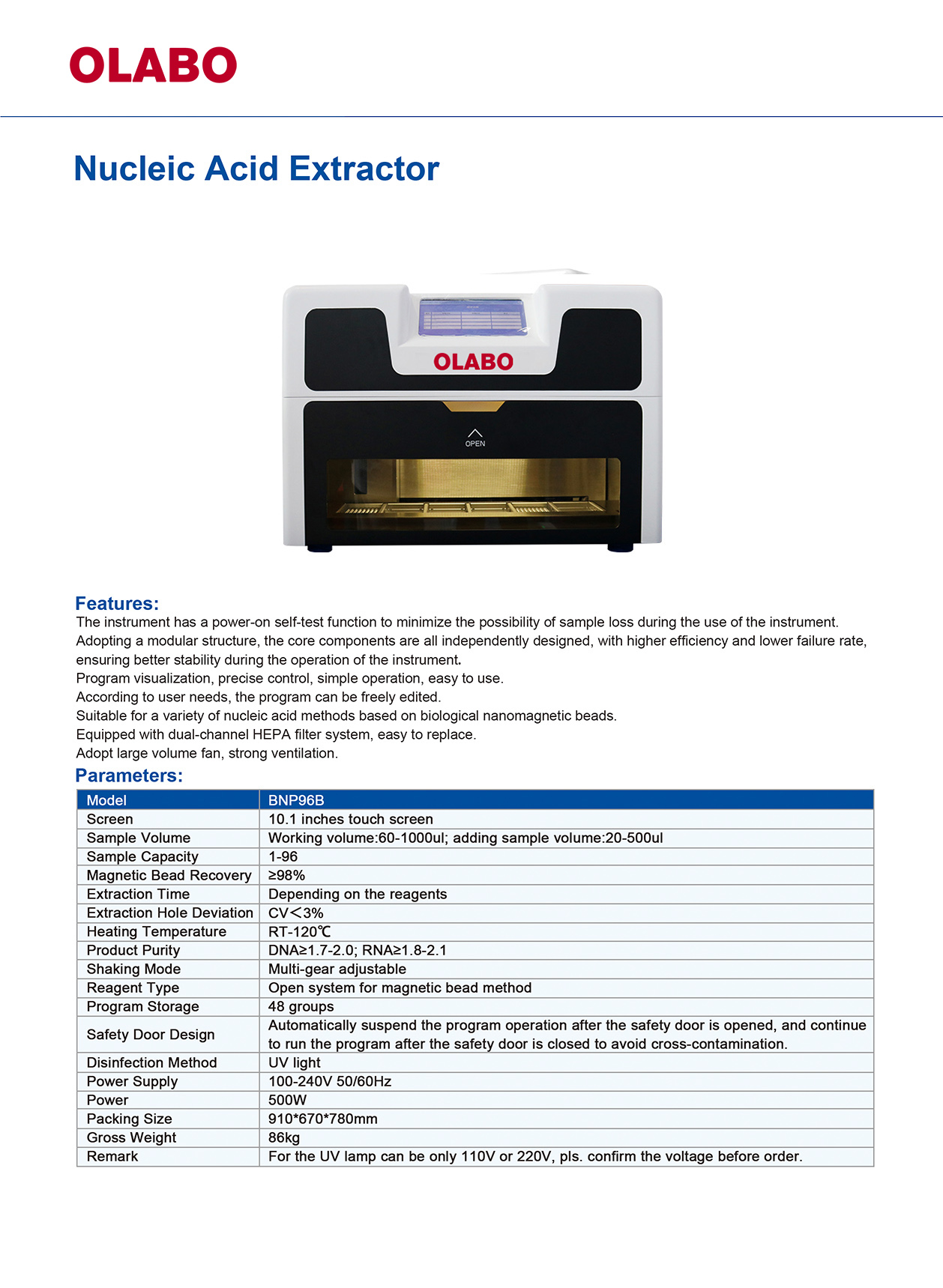

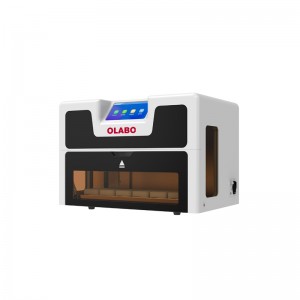

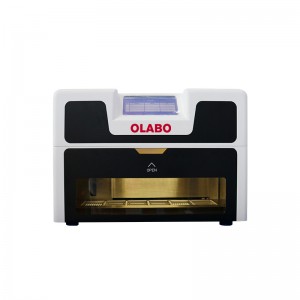

Nucleic Acid Extractor BNP96B

Short Description:

Features：
The instrument has a power-on self-test function to minimize the possibility of sample loss during the use of the instrument
Adopting a modular structure, the core components are all independently designed, with higher efficiency and lower failure rate, ensuring better stability during the operation of the instrument
Program visualization, precise control, simple operation, easy to use
According to user needs, the program can be freely edited
Suitable for a variety of nucleic acid methods based on biological nanomagnetic beads
Equipped with dual-channel HEPA filter system, easy to replace
Adopt large volume fan, strong ventilation
The operation area is reduced, and the experimental operation is fast

Send email to us Download as PDF

Product Detail

Brochures

Product Tags

Technical Parameters：

Model	BNP96B
Screen	10.1 inches touch screen
Sample Volume	Working volume:60-1000ul; adding sample volume:20-500ul
Sample Capacity	1-96
Magnetic Bead Recovery	≥98%
Extraction Time	Depending on the reagents
Extraction Hole Deviation	CV＜3%
Heating Temperature	RT-120℃
Product Purity	DNA≥1.7-2.0; RNA≥1.8-2.1
Shaking Mode	Multi-gear adjustable
Reagent Type	Open system for magnetic bead method
Program Storage	48 groups
Safety Door Design	Automatically suspend the program operation after the safety door is opened, and continue to run the program after the safety door is closed to avoid cross-contamination
Disinfection Method	UV light
Power Supply	100-240V 50/60Hz
Power	500W
Packing Size	910670780mm
Gross Weight	86kg
