Parameter
| Model | BK-2258 | BK-2218 | BK-2268 | ||
| Function | Sectioning, trimming, fast forward, fast backward, quick conversion; | ||||
| automatic retraction (Only for BK-2268). | |||||
| Specimen Retraction | / | / | 60μm (on/off) | ||
| Sectioning Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
| 0~2μm increment 0.5μm | 0~10μm increment 1μm | 0~20μm increment 1μm | |||
| 2~10μm increment 1μm | 10~20μm increment 2μm | 20~60μm increment 5μm | |||
| 10~20μm increment 2μm | 20~60μm increment 5μm | ||||
| 20~60μm increment 5μm | |||||
| Trimming Thickness Range | 0~60μm | 0~60μm | 0~60μm | ||
| Mini. Sectioning Thickness | 0.5μm | 1μm | |||
| Max. Specimen Size | 50*70mm | 60*70mm | 70*70mm | ||
| Precision | ±5％ | ||||
| Specimen Horizontal Feed | 28mm | 29mm | 28mm | ||
| Specimen Vertical Stroke | 52mm | 60mm | 70mm | ||
| Specimen Orientation | XY – 8° | ||||
| External Size (W*D*H) | 565*440*285mm | 570*440*290mm | 590*500*330mm | ||
| Package Size (W*D*H) | 620*530*450mm | 620*530*450mm | 690*590*500mm | ||
| Gross Weight | 40kg | 40kg | 54kg | ||
Features
* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment.
* Hand-wheel balance is precisely adjusted and locked at any position, ensuring safetyand convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration, cassette clam is optional.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* Cassette clamp can be locked at any position along each of the three axes,enabling easy adjustment of the specimen sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.

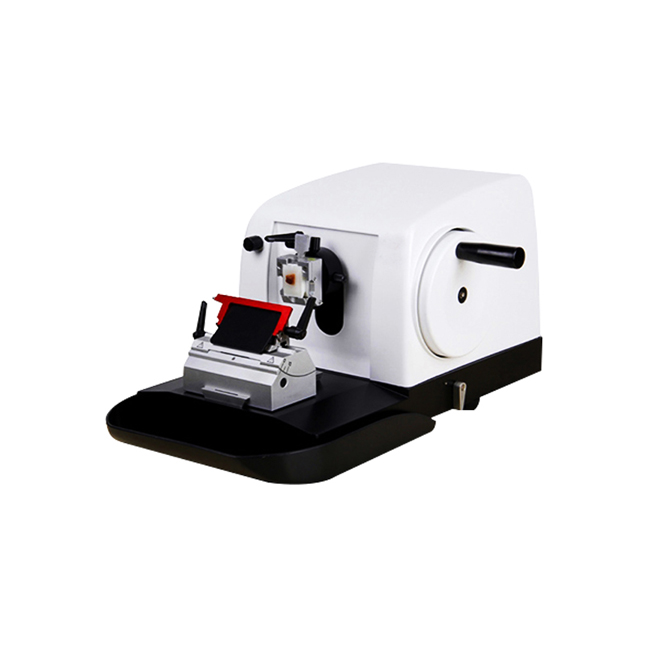

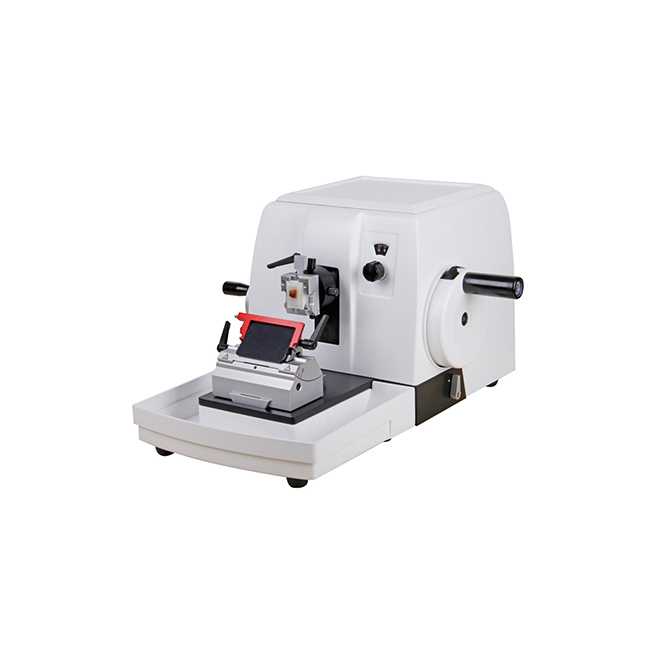

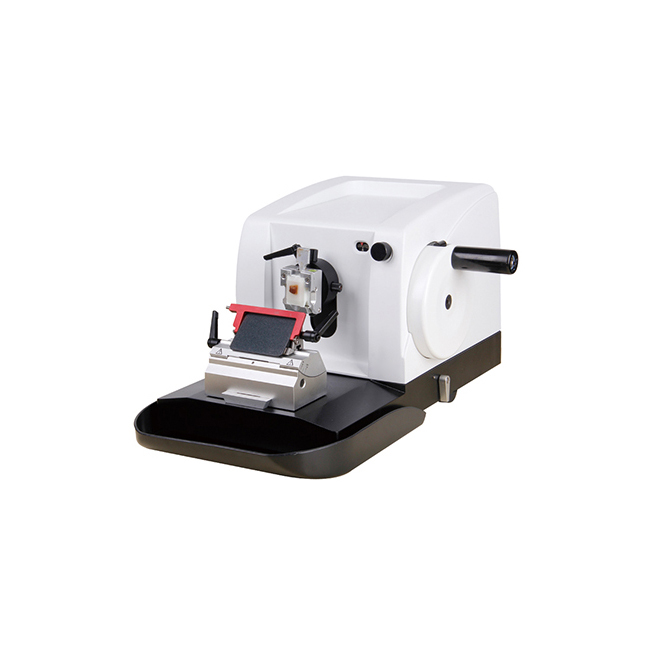

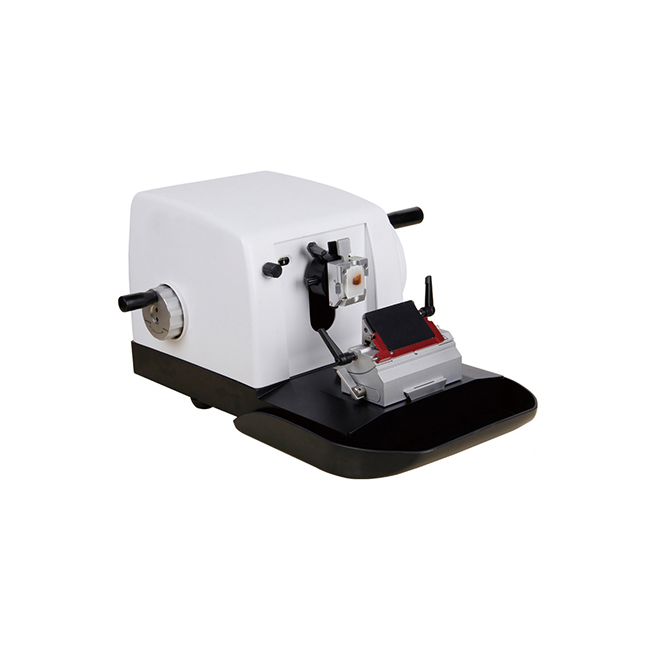

Product detail pictures:
