New Fashion Design for Medical Deep Freezer Manufacturer - Laboratory Equipment -80 Degree Vertical Freeze Dryer for Industrial – OLABO
New Fashion Design for Medical Deep Freezer Manufacturer - Laboratory Equipment -80 Degree Vertical Freeze Dryer for Industrial – OLABO Detail:
Parameter
| Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering | |
| chamber with 8 port manifold | |||||
| Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||
| Tray | 4 pcs | 3 pcs | |||
| Height Between Trays | 50mm | 68mm | |||
| Cold Trap Temperature | ≤-60℃/-80℃ | ||||
| Cold Trap Capacity | 9.5L | ||||
| Cold Trap Size (Dr*H) | Φ215*260mm | ||||
| Vacuum Degree | <10 Pa | ||||
| Water Capture Capacity | 4kg/24h | ||||
| Tray Size (D*H) | Φ200*20mm | ||||
| Freeze Drying Time | 24h | ||||
| Loading Capacity/Shelf (Liquid) | 0.3L | ||||
| Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||
| Drying Chamber Size (D*H) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||
| Can Load Vials Qty | Φ22mm | 260 | 195 | ||
| Φ16mm | 480 | 360 | |||
| Φ12mm | 920 | 690 | |||
| Refrigerant | R600a+R290+R23 | ||||
| Cooling System | Air cooling | ||||
| Consumption | -60℃: 0.9kW,-80℃: 1.5kW | ||||
| Power Supply | AC220V, 50Hz, 60Hz (single phase) | ||||
| 110V/220V, 60Hz (single phase, only for -60℃) | |||||
| Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||
| Optional Function & Accessory | Tray heating (for all models), | ||||
| Cold trap defrosting (for all models), | |||||
| Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), | |||||
| Import vacuum pump | |||||
| External Size (W*D*H) | 460*620*920/1370mm | ||||
| Package Size (W*D*H)mm/ | Main Body | 590*710*1170/90kg | 590*710*1170/90kg | ||
| Gross Weight | Drying Chamber | 340*340*460/12kg | 390*390*670/12kg | ||
| Vacuum Pump | 590*380*220/22kg | 590*380*220/22kg | |||
Advantage
*LCD touch screen.
*With historical data inquiry function.
*With USB interface to export the data.
*Large capacity ice condenser trap and without coil inside.
*With cascade refrigeration technology.
*Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
*Ice condenser trap and operation panel are made by stainless steel.
*Drying chamber is transparent which is visual and safe.
*Shelves are stainless steel, which can be adjustable per the requirements.
Product detail pictures:
Related Product Guide:
The corporation upholds the philosophy of "Be No.1 in high quality, be rooted on credit rating and trustworthiness for growth", will continue to serve outdated and new consumers from home and overseas whole-heatedly for New Fashion Design for Medical Deep Freezer Manufacturer - Laboratory Equipment -80 Degree Vertical Freeze Dryer for Industrial – OLABO, The product will supply to all over the world, such as: Kazakhstan, Porto, Honduras, Our domestic website's generated over 50, 000 purchasing orders every year and quite successful for internet shopping in Japan. We would be happy to have an opportunity to do business with your company. Looking forward to receiving your message !

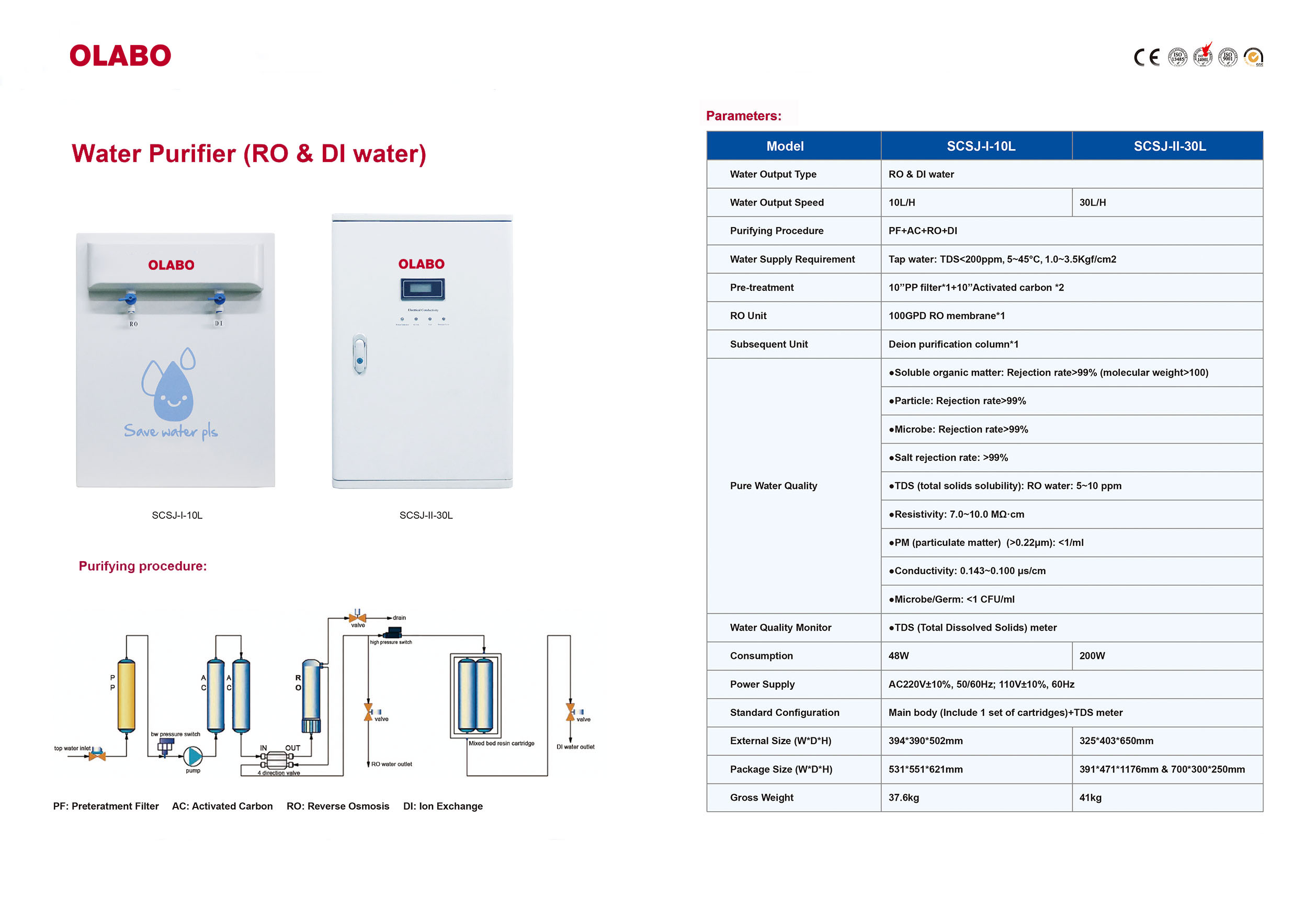

Download: Water Purifier (RO/DI Water)
