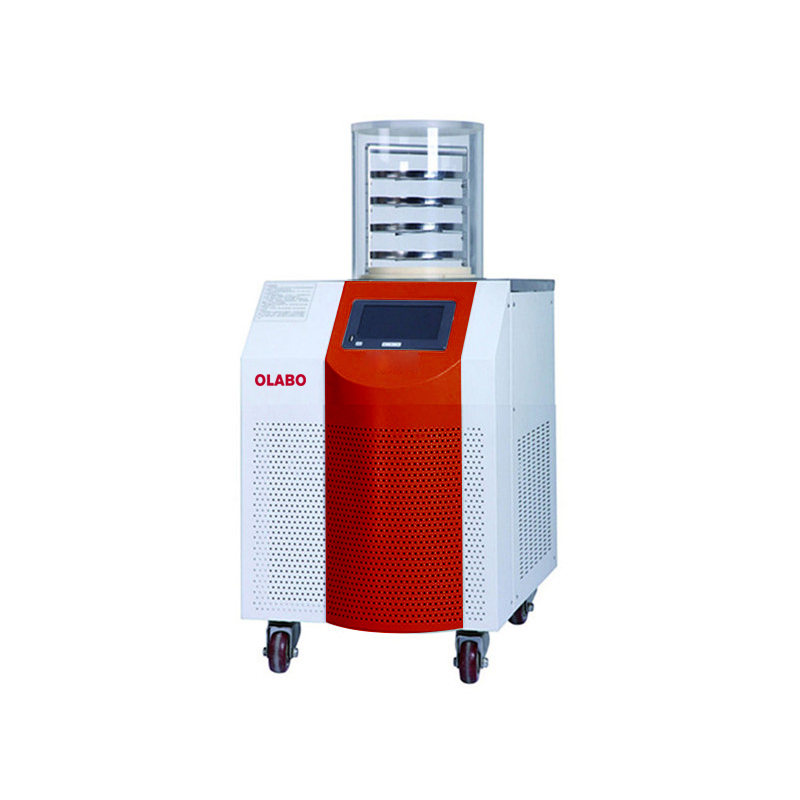

New Delivery for China Phamacy Freeze Dryer Herbs Lyophilizer Organic Vacuum Dryer
abide by the contract”, conforms towards the market requirement, joins during the market competition by its good quality likewise as provides additional comprehensive and great services for customers to let them turn out to be big winner. The pursue of your enterprise, is the clients’ fulfillment for New Delivery for China Phamacy Freeze Dryer Herbs Lyophilizer Organic Vacuum Dryer, Sincerely hope to develop long-term company associations along with you and we are going to do our greatest provider for you.
abide by the contract”, conforms towards the market requirement, joins during the market competition by its good quality likewise as provides additional comprehensive and great services for customers to let them turn out to be big winner. The pursue of your enterprise, is the clients’ fulfillment for China Lyophilizer, Freeze Dryer, our qualify merchandise have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can supply a safe, environmental products and super service to our clients from all of the world and establish strategic partnership with them by our experienced standards and unremitting efforts.
Parameter
| Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold |
|
| Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||
| Tray | 4 pcs | 3 pcs | |||
| Height Between Trays | 50mm | 68mm | |||
| Cold Trap Temperature | ≤-60℃ | ||||
| Cold Trap Capacity | 9.5L | ||||
| Cold Trap Size (Diameter*H) | Φ215*260mm | ||||
| Vacuum Degree | <10 Pa | ||||
| Water Capture Capacity | 3kg/24h | ||||
| Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||
| Freeze Drying Time | 24h | ||||
| Loading Capacity/Shelf (Liquid) | 0.3L | ||||
| Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||
| Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||
| Total Qty. Of Vial Φ22 | 260 | 195 | |||
| Total Qty. Of Vial Φ16 | 480 | 360 | |||
| Total Qty. Of Vial Φ12 | 920 | 690 | |||
| Refrigerant | R600a+R290+R23 | ||||
| Cooling System | Air cooling | ||||
| Power Supply | AC220V/110V±10%, 50/60Hz(single phase) | ||||
| 110V/60Hz (single phase) | |||||
| Power Consumption | 1.3KW | ||||
| Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||
| Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) |
||||
| External Size (W*D*H) | 640*610*550/810mm | 640*610*550/950mm | 640*610*550/990mm | ||
| Package Size(W*D*H)mm/ Gross Weight |
Main Body | 720*705*730(85kg) | |||
| Drying Chamber /Vacuum Pump |
705*590*530 (50kg) |
705*590*530 | 705*590*530 (60kg) |
720*705*730 (65kg) |
|
Advantage
*LCD touch screen.
*With historical data inquiry function.
*With USB interface to export the data.
*Large capacity ice condenser trap and without coil inside.
*With cascade refrigeration technology.
*Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
*Ice condenser trap and operation panel are made by stainless steel.
*Drying chamber is transparent which is visual and safe.
*Shelves are stainless steel, which can be adjustable per the requirements.abide by the contract”, conforms towards the market requirement, joins during the market competition by its good quality likewise as provides additional comprehensive and great services for customers to let them turn out to be big winner. The pursue of your enterprise, is the clients’ fulfillment for New Delivery for China Lyopro-16 Phamacy Freeze Dryer Herbs Lyophilizer Organic Vacuum Dryer, Sincerely hope to develop long-term company associations along with you and we are going to do our greatest provider for you.
New Delivery for China Lyophilizer, Freeze Dryer, our qualify merchandise have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can supply a safe, environmental products and super service to our clients from all of the world and establish strategic partnership with them by our experienced standards and unremitting efforts.
Download: Freeze Dryer
