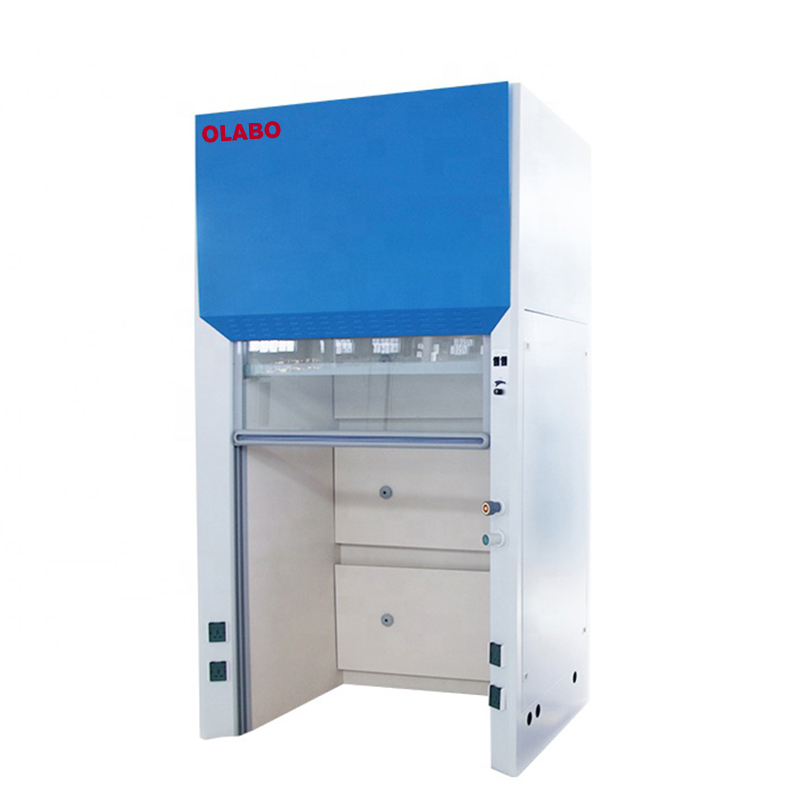

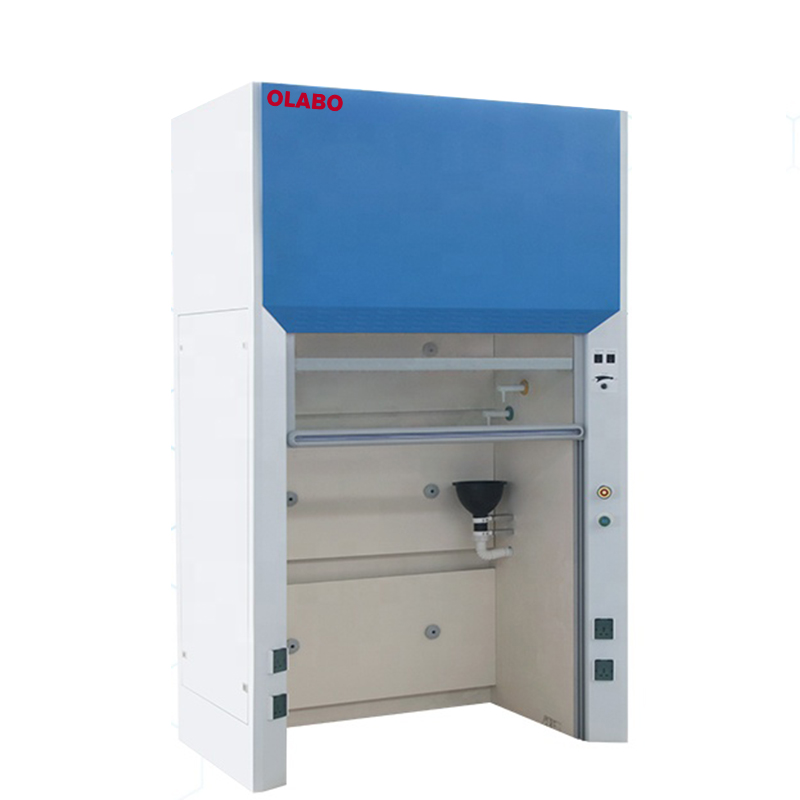

New Arrival China Horizontal Laminar Flow Hood - OLABO Manufacturer Ducted Fume-Hood(W) For Lab – OLABO Detail:

Advantage

1. With memory function in case of power-failure.
2. Operators are available to walk into the fume hood to operate if need.
3. Large room exhaust system, suitable for large laboratory instruments and equipment.
4.Fume Hood is used to protect lab environment and operator during general chemical applications .
5.It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion.
6.By installing proper filter, it can also protect environment.

Parameter

Model		FH1200(W)	FH1500(W)	FH1800(W)
External Size (WDH)		12008002215mm	15008002215mm	18008002215mm
Internal Size (WDH)		9805501670mm	12805501670mm	15805501670mm
Max Opening		1300mm
Exhaust Airflow Volume		1150m³/h	1500m³/h	1850m³/h
Inflow Air Velocity		0.3~0.8m/s
Noise		≤62dB
Vibration		Amplitude≤5μm
Illumination		≥800Lux
Fluorescent Lamp		12W*2	16W*2	16W*2
Power Supply		AC220V±10%, 50/60Hz; 110 V±10%, 60Hz
Consumption		400W	500W	800W
Front Window		Manual, 5mm toughened glass, height adjustable
Material	Exterior	1.0mm cold-rolled steel with bacteria powder coating.
	Interior	Compact laminate board with good acid and alkali resistance function

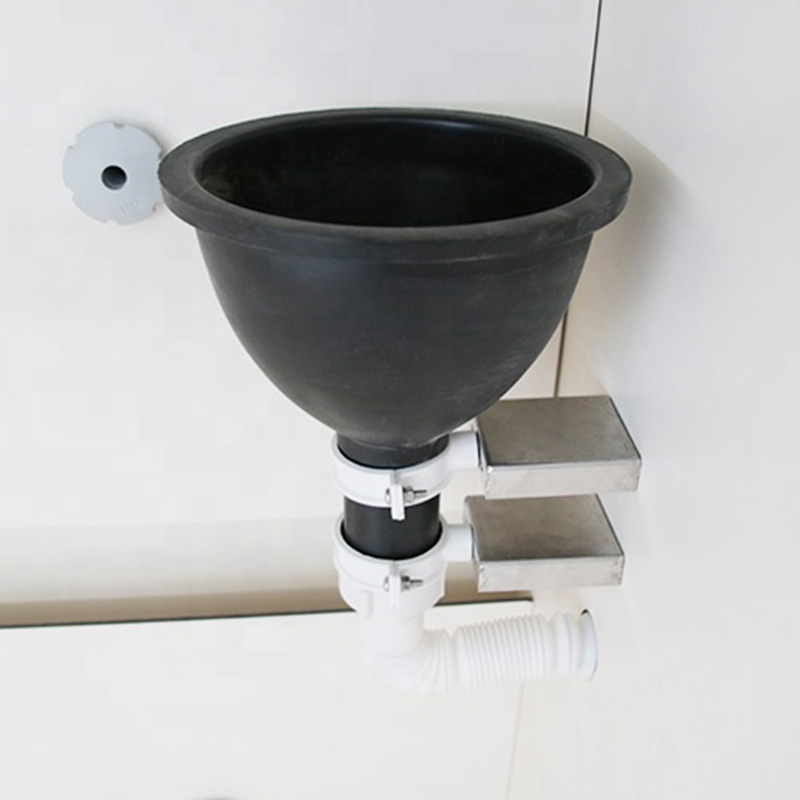

Standard Accessory		External blower, LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4.3 meters φ300mm PVC exhaust duct.

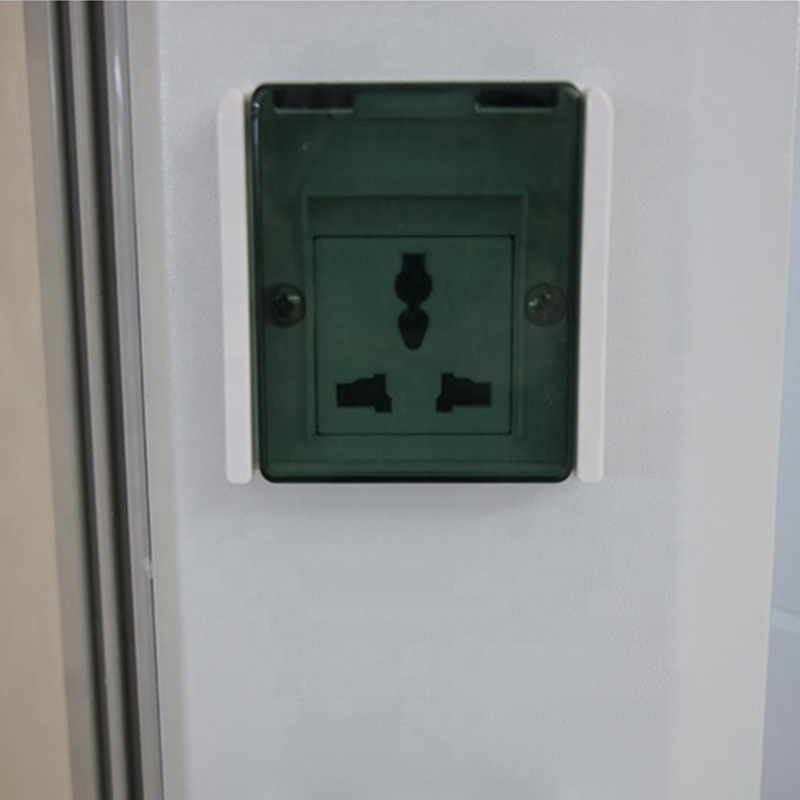

Sockets		Total load of 4 waterproof sockets: ≤500W
Package Size(WDH)	Main body	140010502450mm	171010502450mm	201010502450mm
	Exhaust Blower	970810720mm	1040890710mm	1040890710mm
Gross Weight		300kg	340kg	390kg

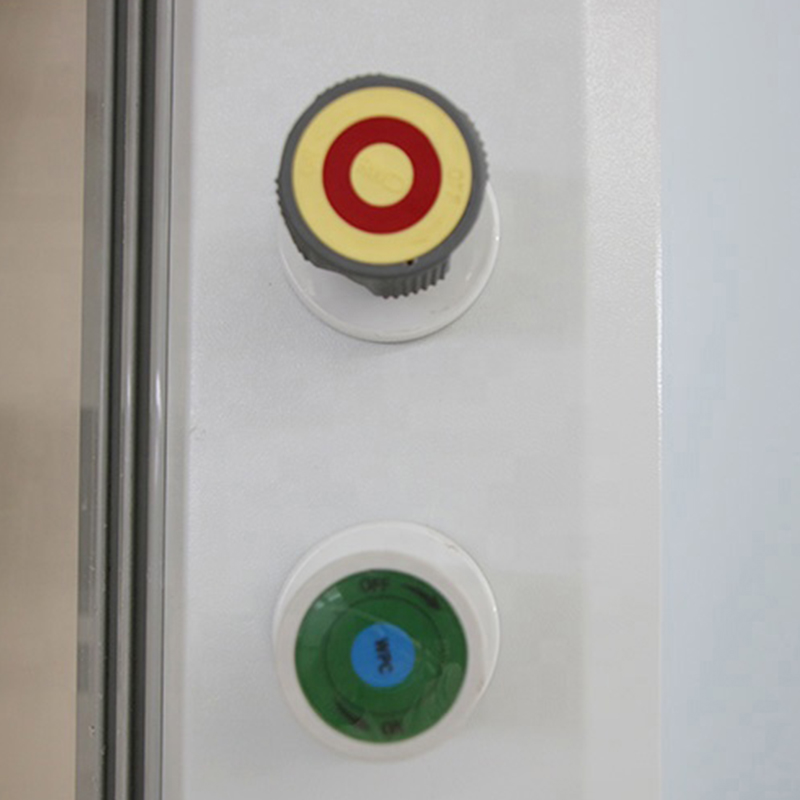

Product detail pictures:
