Hot New Products Blood Storage Fridge - OLABO Laboratory and Food Vacuum mini Freeze Dryer Lyophilizer – OLABO
Hot New Products Blood Storage Fridge - OLABO Laboratory and Food Vacuum mini Freeze Dryer Lyophilizer – OLABO Detail:
Parameter
| Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold |
|
| Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||
| Tray | 4 pcs | 3 pcs | |||
| Height Between Trays | 50mm | 68mm | |||
| Cold Trap Temperature | ≤-60℃ | ||||
| Cold Trap Capacity | 9.5L | ||||
| Cold Trap Size (Diameter*H) | Φ215*260mm | ||||
| Vacuum Degree | <10 Pa | ||||
| Water Capture Capacity | 3kg/24h | ||||
| Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||
| Freeze Drying Time | 24h | ||||
| Loading Capacity/Shelf (Liquid) | 0.3L | ||||
| Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||
| Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||
| Total Qty. Of Vial Φ22 | 260 | 195 | |||
| Total Qty. Of Vial Φ16 | 480 | 360 | |||
| Total Qty. Of Vial Φ12 | 920 | 690 | |||
| Refrigerant | R600a+R290+R23 | ||||
| Cooling System | Air cooling | ||||
| Power Supply | AC220V/110V±10%, 50/60Hz(single phase) | ||||
| 110V/60Hz (single phase) | |||||
| Power Consumption | 1.3KW | ||||
| Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||

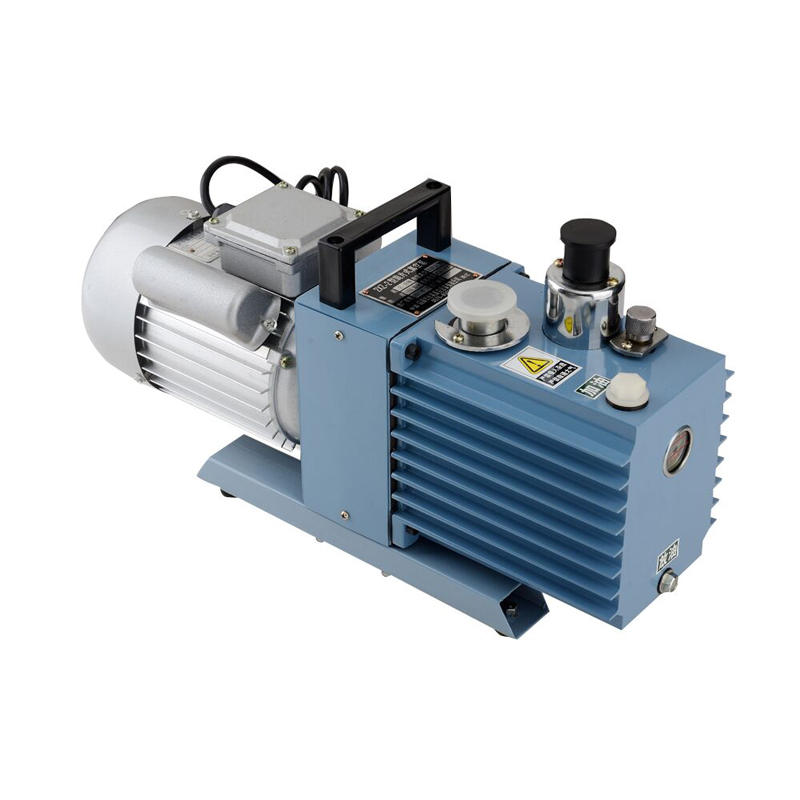

| Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) |
||||
| External Size (W*D*H) | 640*610*550/810mm | 640*610*550/950mm | 640*610*550/990mm | ||
| Package Size(W*D*H)mm/ Gross Weight |
Main Body | 720*705*730(85kg) | |||
| Drying Chamber /Vacuum Pump |
705*590*530 (50kg) |
705*590*530 | 705*590*530 (60kg) |
720*705*730 (65kg) |
|
Advantage
*LCD touch screen.
*With historical data inquiry function.
*With USB interface to export the data.
*Large capacity ice condenser trap and without coil inside.
*With cascade refrigeration technology.
*Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
*Ice condenser trap and operation panel are made by stainless steel.
*Drying chamber is transparent which is visual and safe.
*Shelves are stainless steel, which can be adjustable per the requirements.

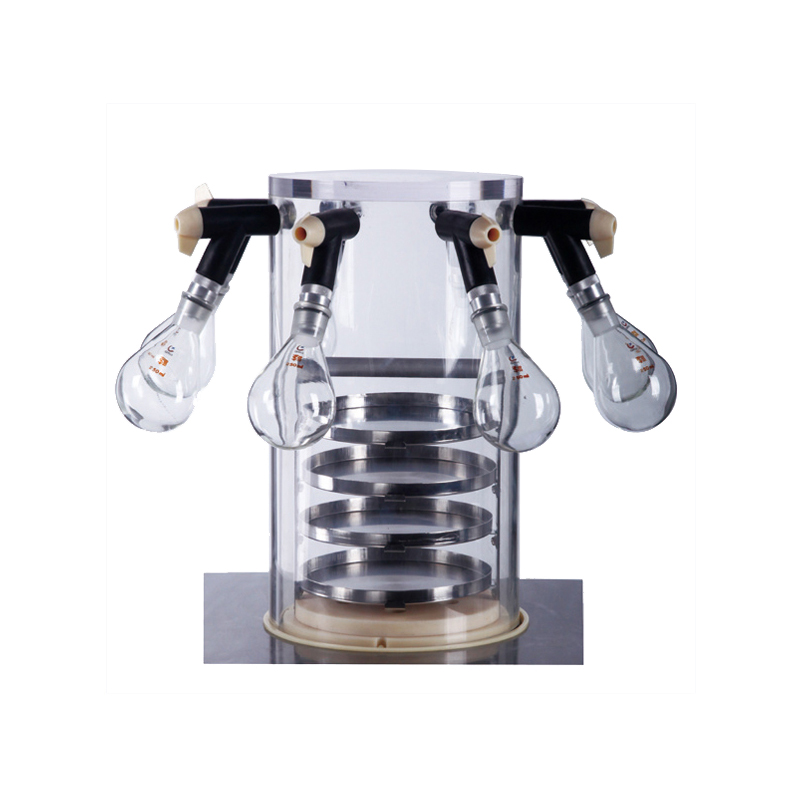

Product detail pictures:
