High reputation Water Bath Incubator - OLABO Filling Peristaltic Pump Liquid Dispensing Peristaltic Pump – OLABO
High reputation Water Bath Incubator - OLABO Filling Peristaltic Pump Liquid Dispensing Peristaltic Pump – OLABO Detail:
Parameter
| Drive model | BG600-S |
| Speed range | 0.1~600rpm（reversible） |
| speed resolution | 0.1rpm |
| Flow range | 1.3-12000ml/min |
| Filling Accuracy | ＜±0.5% |
| Flow calibration | Yes |
| Control Method | Rotary encoded knob |
| Display Mode | 4-LED display |
| Suckback speed | 10~300rpm |
| Power supply | AC220V±10%(standard) or AC110V±10%(optional) |
| Power consumption | ＜500W |
| Environment Temperature | 0~40℃ |
| Relatively Humidity | ＜80%， No condensation |
| Drive size | 345*232*226mm |
| Drive weight | 17.5kg |
| Motor type | Brushless motor |
| IP grade | IP31 |
| Working mode | Transmission mode |
| Speed status signal output | 0-10kHz linear corresponds to 60-600rpm（Max speed） |
| Rev. Stop status signal output | switching value signal output |
| Direction status signal output | switching value signal output |
| External control interface | DB-15 |
| External control | Control Rev. Stop,Direction,Speed.-Support RS485/MODBUS communication protocol , analog quantity control (0-5V 0-10V 4-20mA …)foot switch control. |
Advantage
* with three available modes: 0-5V, 0-10V and 4-20mA.
* Memory function is also available in the product in case of power off.
* Besides, switching knobs are designed clearly so that it is easy to operate for customers.
* FULL SPEED button available for filling in & emptying out.
* Cost-effective

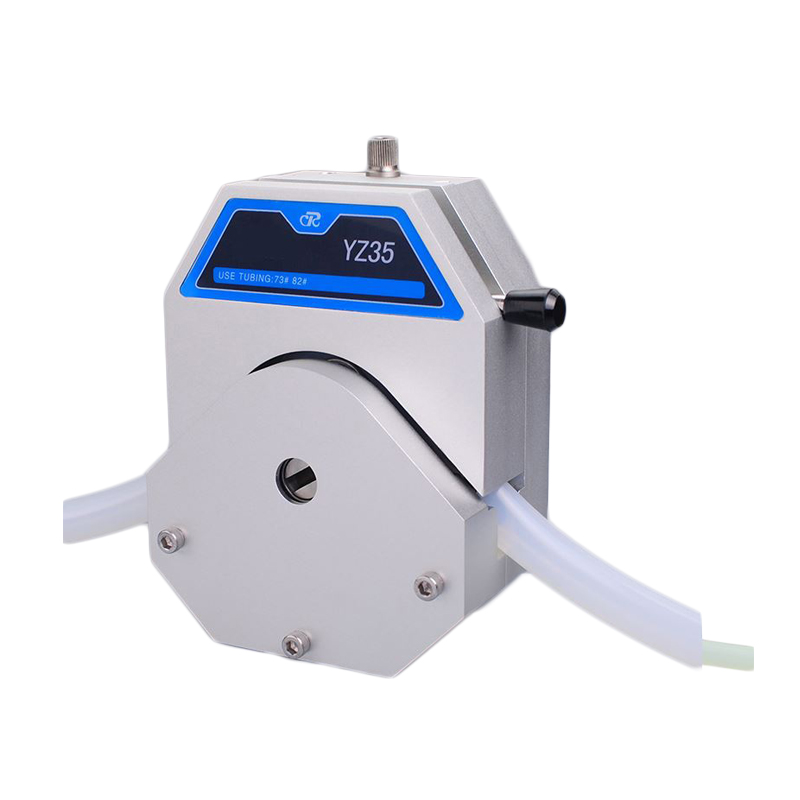

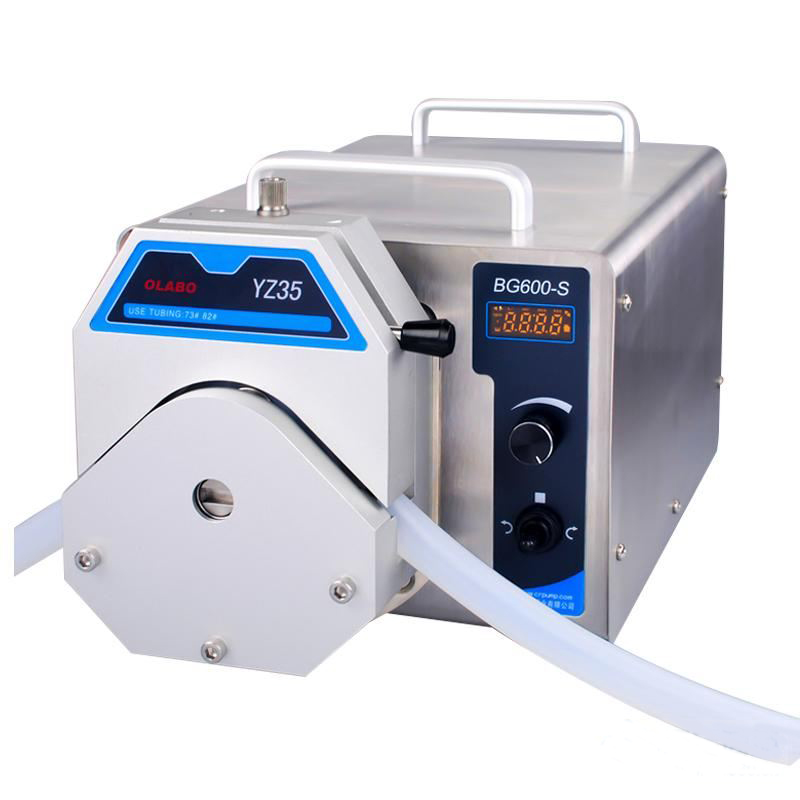

Product detail pictures:
