Good User Reputation for Benchtop Microplate Cleaning Machine - 400T / H Auto Chemistry Analyzer BK-400 – OLABO
Good User Reputation for Benchtop Microplate Cleaning Machine - 400T / H Auto Chemistry Analyzer BK-400 – OLABO Detail:
Parameter
| Model | BK-400 | |
| Overall | Throughput | 400 Test/hour |
| Performance | Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
| Certification | CE, ISO9001, ISO14001, ISO13485 | |
| Sample Positions | 60 or 90 sample positions, built-in barcode system available | |
| Sample & Reagent System | Reagent Positions | 45 refrigerated reagent positions |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | Teflon coating, with anti-collision function, liquid leveldetection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Temperature Control | 37±0.1℃, real-time monitoring | |
| Reaction System | Cuvettes | 120reusable cuvettes, optical length 6mm |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 12V/30W halogen-tungsten lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340, 405, 450,510, 546, 578, 630,700nm | |
| Absorbance | 0~3.0Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point, 2-point and multipoint linear |
| Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P | ||
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10, 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External,multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
| Temperature | 10~30℃ | |
| Water Consumption | Deionized water:12L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 1167*780*1016mm |
| Net Weight | 193kg | |
| Package Size (W*D*H) | 1348*928*1399mm | |
| Gross Weight | 267kg | |
1. Reaction Tray
37±0.1℃, real-time monitor.

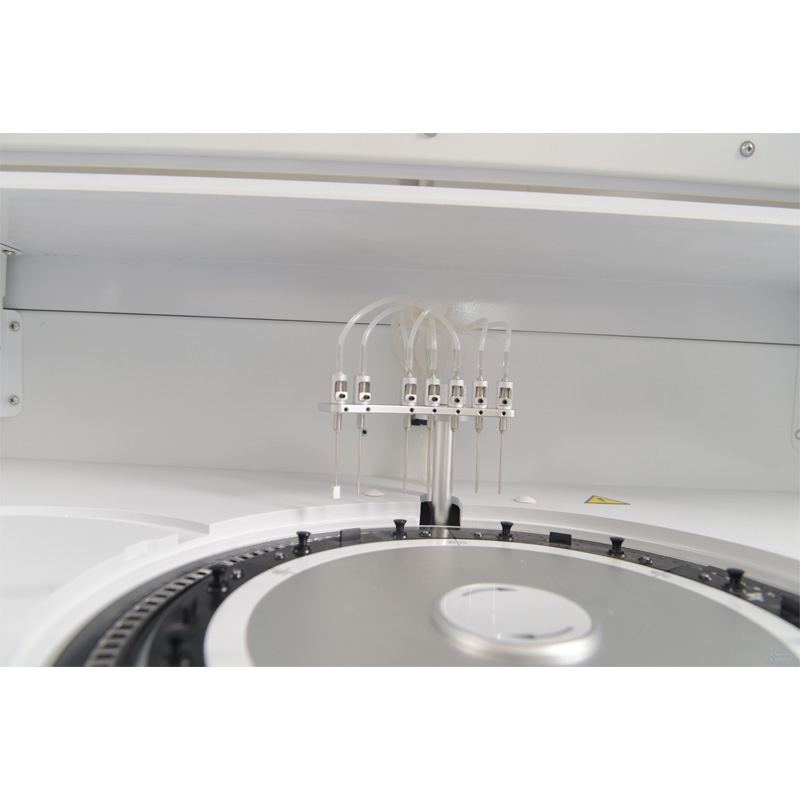

2. Mixer Probe
Teflon coating to avoid cross contamination.
3. Reagent Tray
2-8℃ cooling for 24 hours.
4. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.
5. Washing Probe
Independent 7-step washing system.
6. Software
User-friendly software.

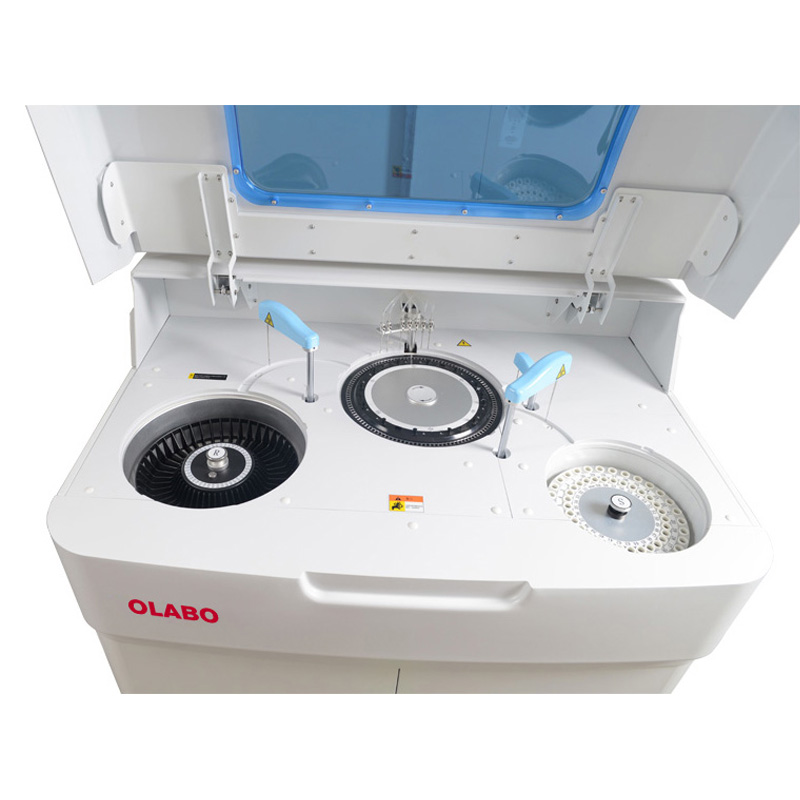

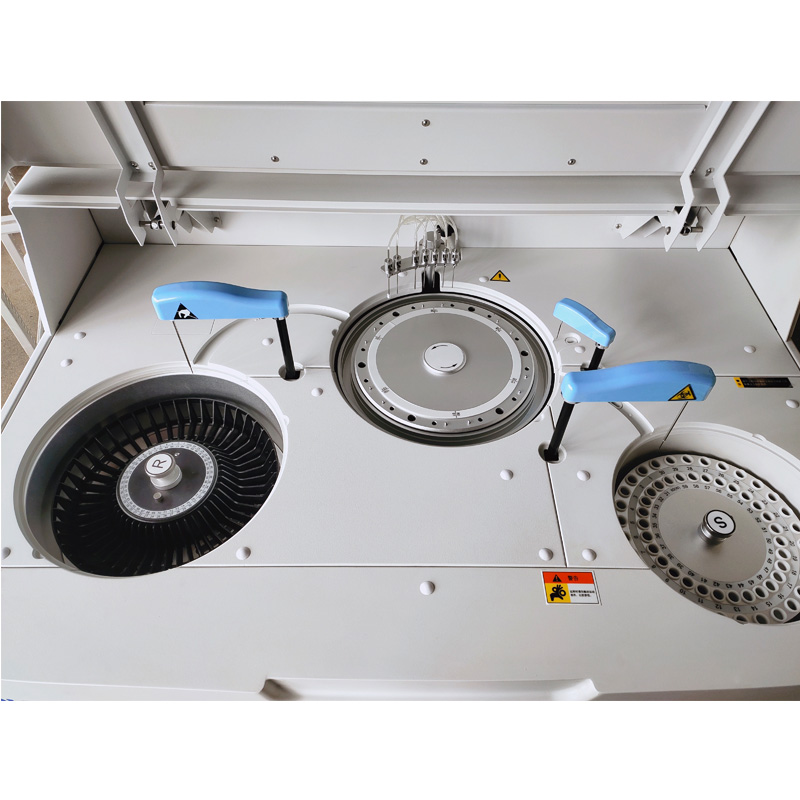

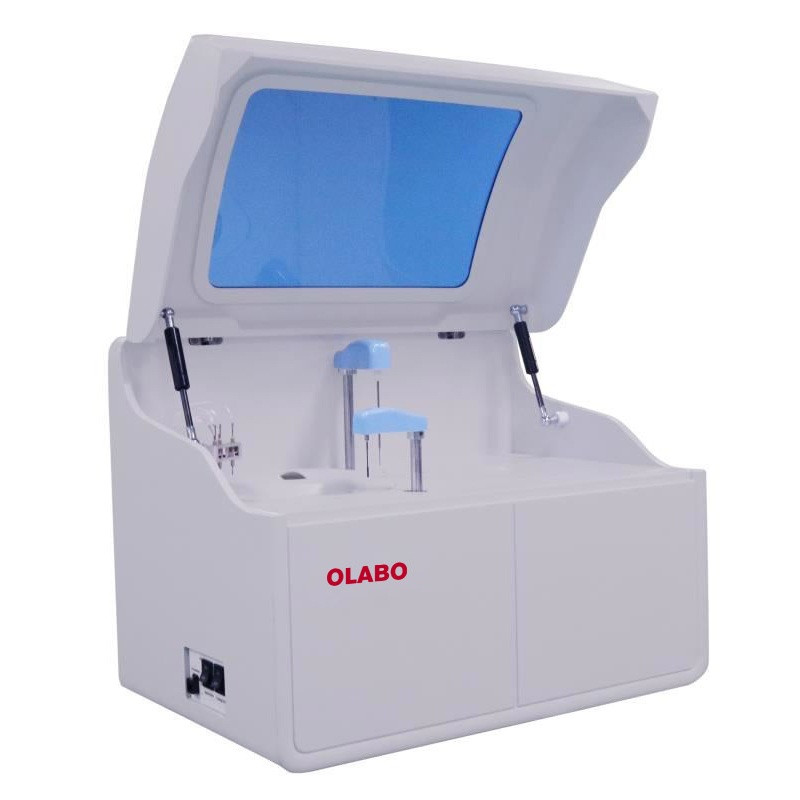

Product detail pictures:
