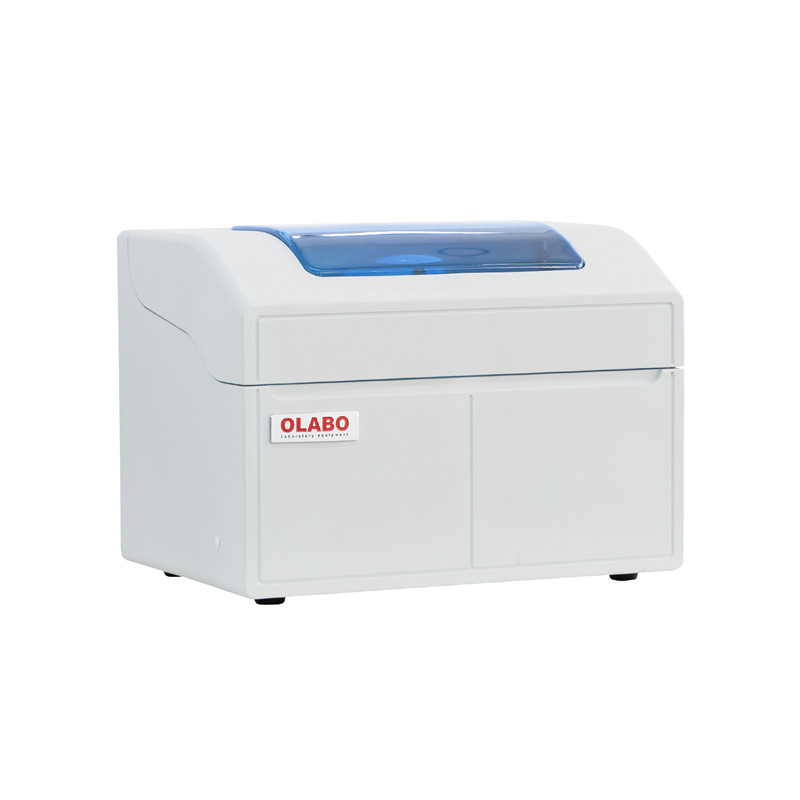

factory low price Absorbance Reader - Bk-200mini(NEW BK-200) Auto Chemistry Analyzer – OLABO
factory low price Absorbance Reader - Bk-200mini(NEW BK-200) Auto Chemistry Analyzer – OLABO Detail:
Parameter
| Model | BK-200 | |
| Overall Performance | Throughput | 200 Tests/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic) | |
| Certification | CE, ISO9001, ISO14001, ISO13485 | |
| Sample & Reagent System | Sample Positions | 37 sample positions |
| Reagent Positions | 28 reagent positions | |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | Teflon coating ,with anti-collision function, liquid leveldetection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
| Reaction System | Temperature Control | 37±0.1℃, real-time monitoring |
| Cuvettes | 48 reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT function | YES | |
| Optical System | Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340,405,450,510,546,578,630,700nm | |
| Absorbance | 0~3.0Abs | |
| Calibration & QC | Calibration | Linear:K factor, 1-point, 2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | |
| Data Management | Software | Windows 7/8/10 , 32or 64bit |
| LIS System | Bi-direction,support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External, multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
| Temperature | 10~30℃ | |
| Water Consumption | Deionized water:12L/H | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 625*425*460mm |
| Net Weight | 36kg | |
| Package Size (W*D*H) | 721*531*855mm | |
| Gross Weight | 50kg | |
Features
1. 37 Sample positions
2. 28 Reagent positions
3. 48 Reaction cuvettes
4. 200 Tests per hour
5. Probe with anti-collision function, liquid level dectection function.

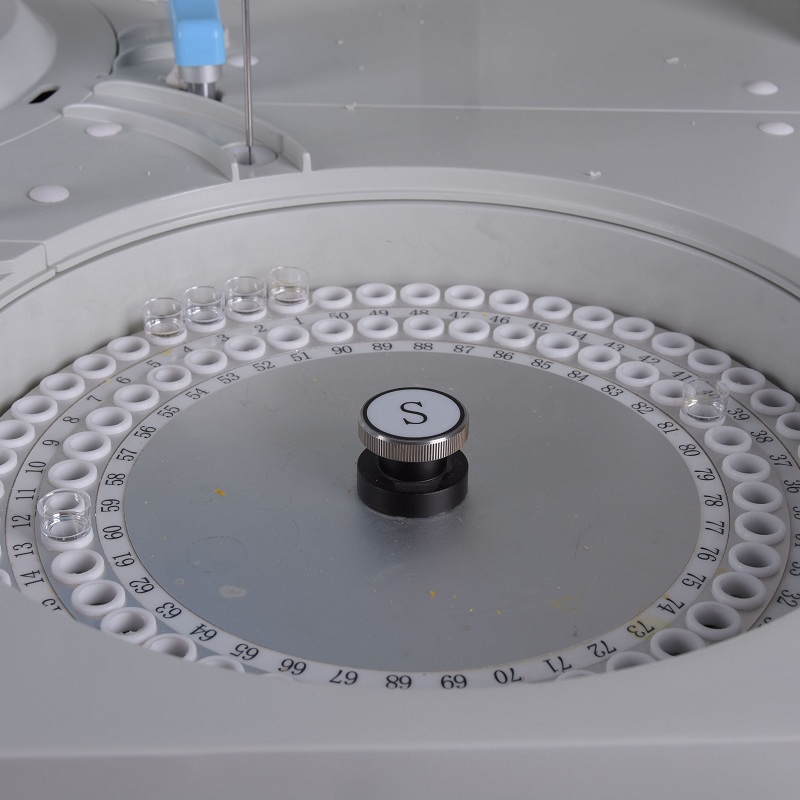

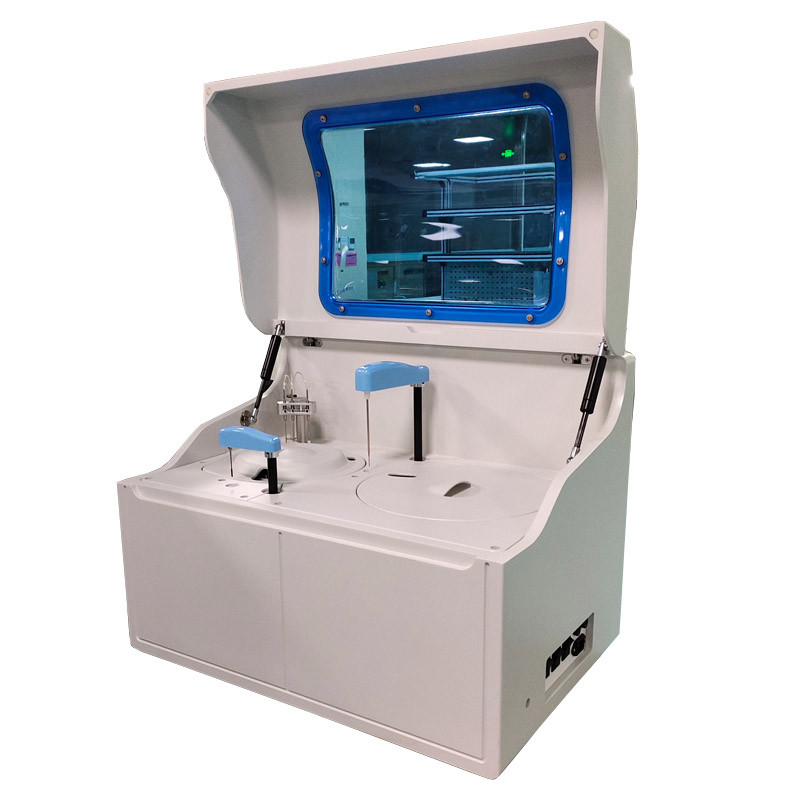

1. Reaction Tray
37±0.1℃, real-time monitor
2. Reagent Tray
Refrigerated tray with independent switch.

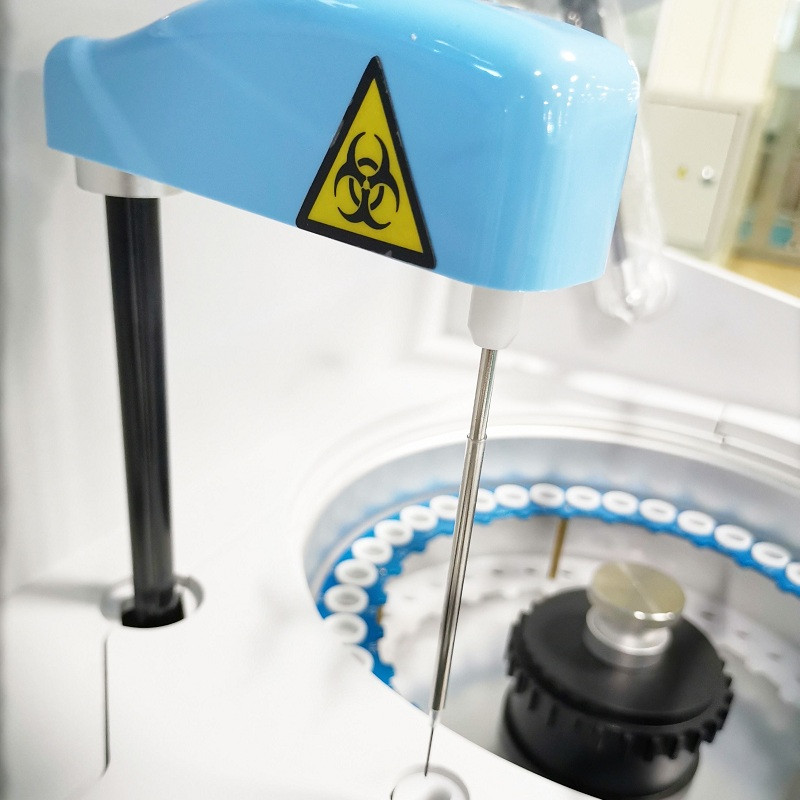

3. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.
4. Mixer Probe
Teflon coating to avoid cross contamination
5. Washing Probe
Independent 2-step washing system
6. LAN Port Access

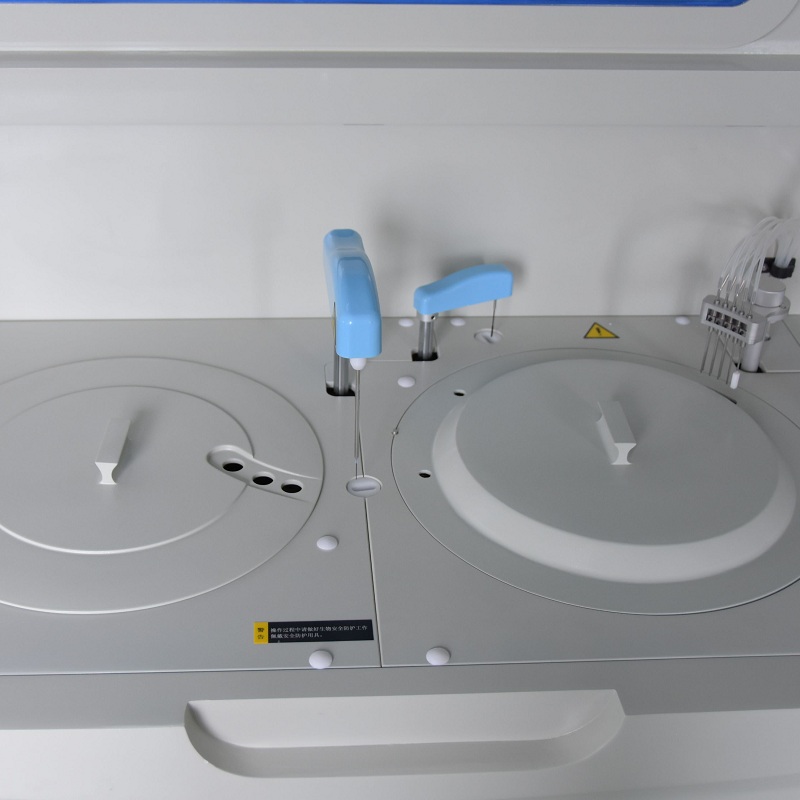

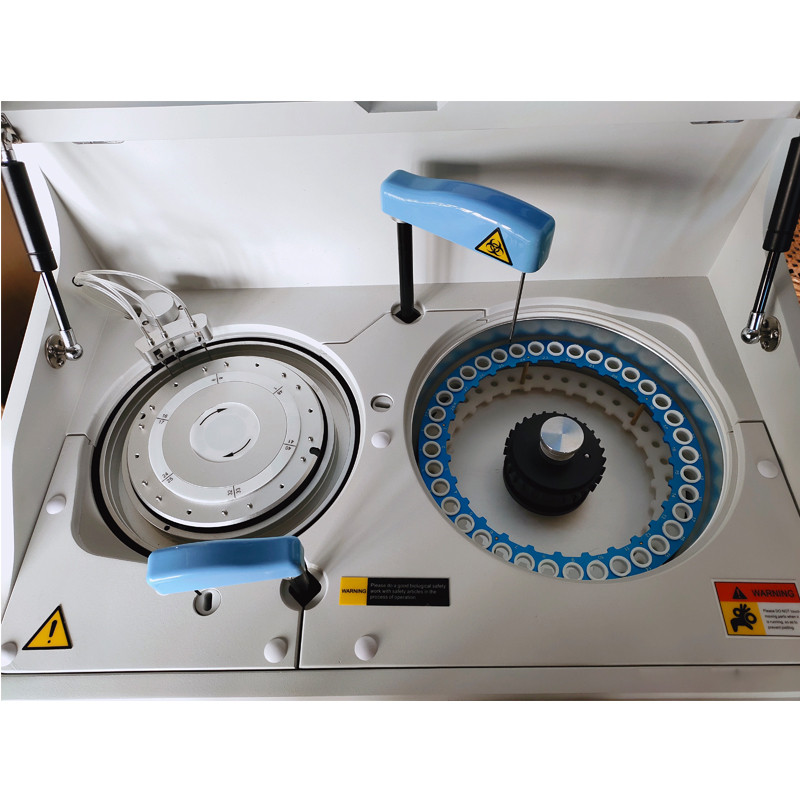

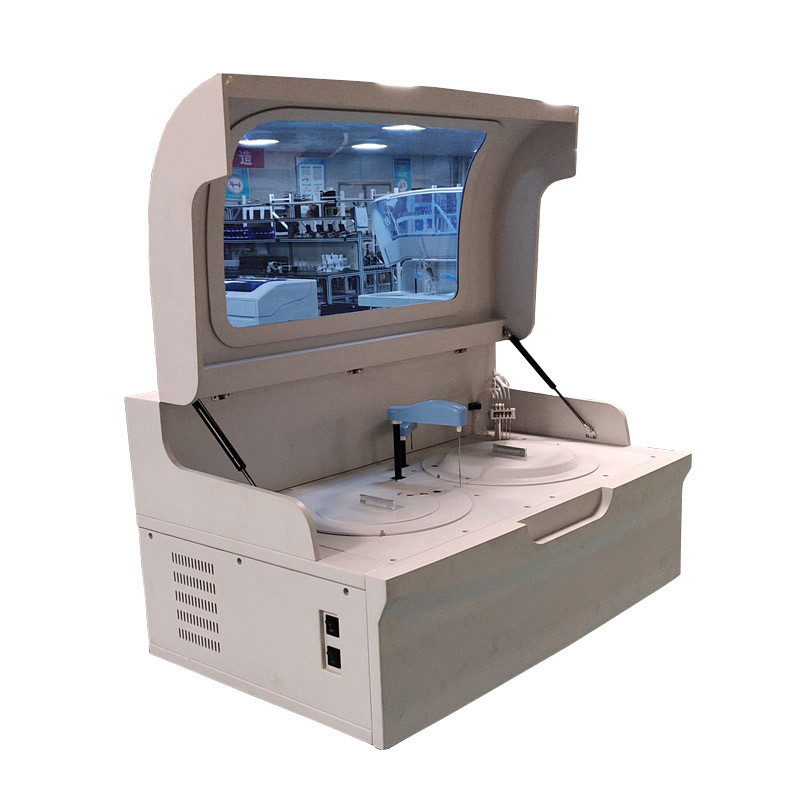

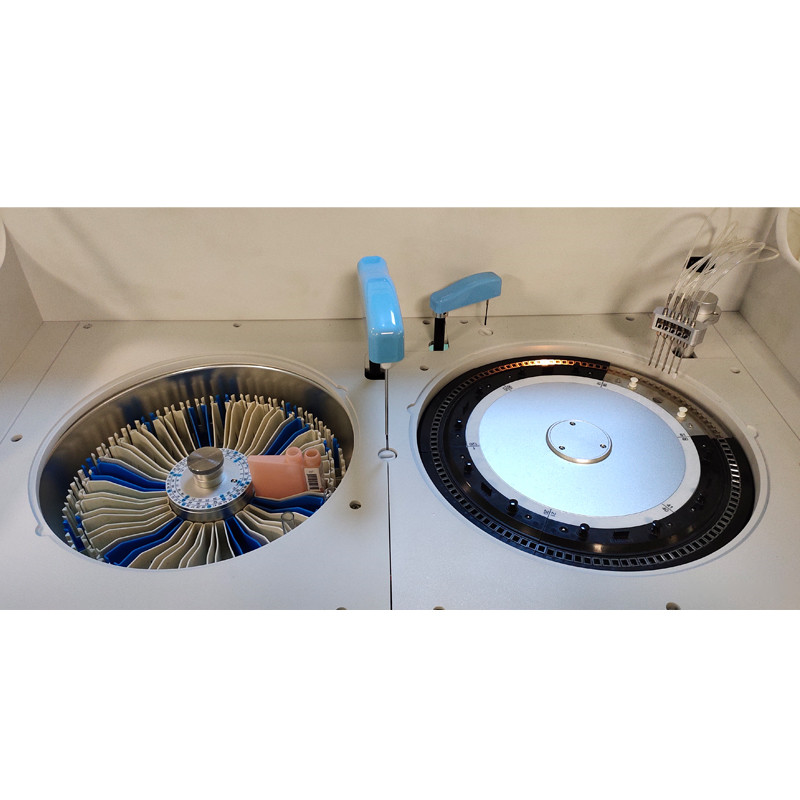

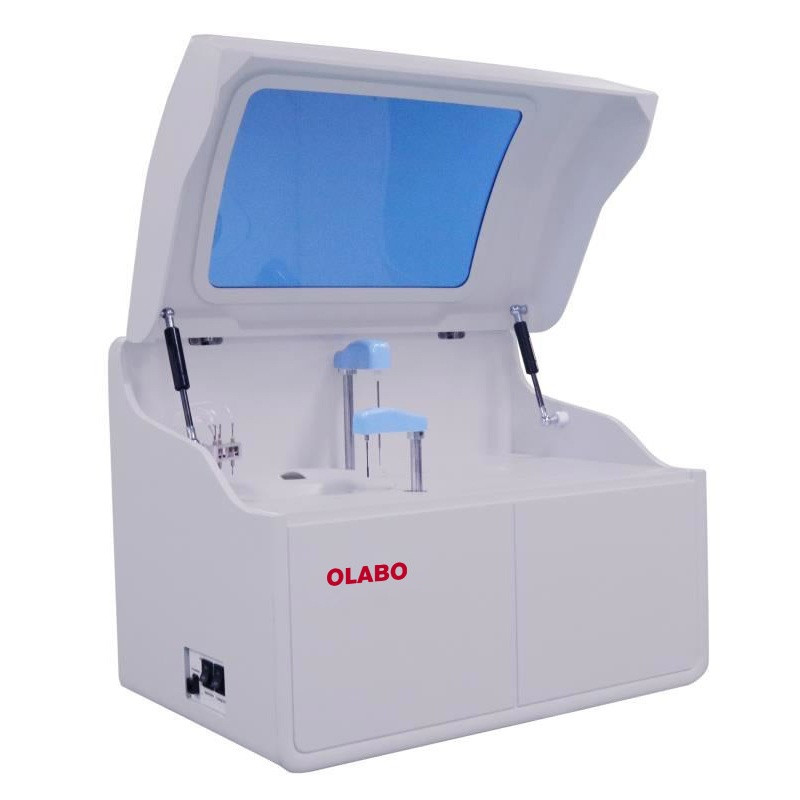

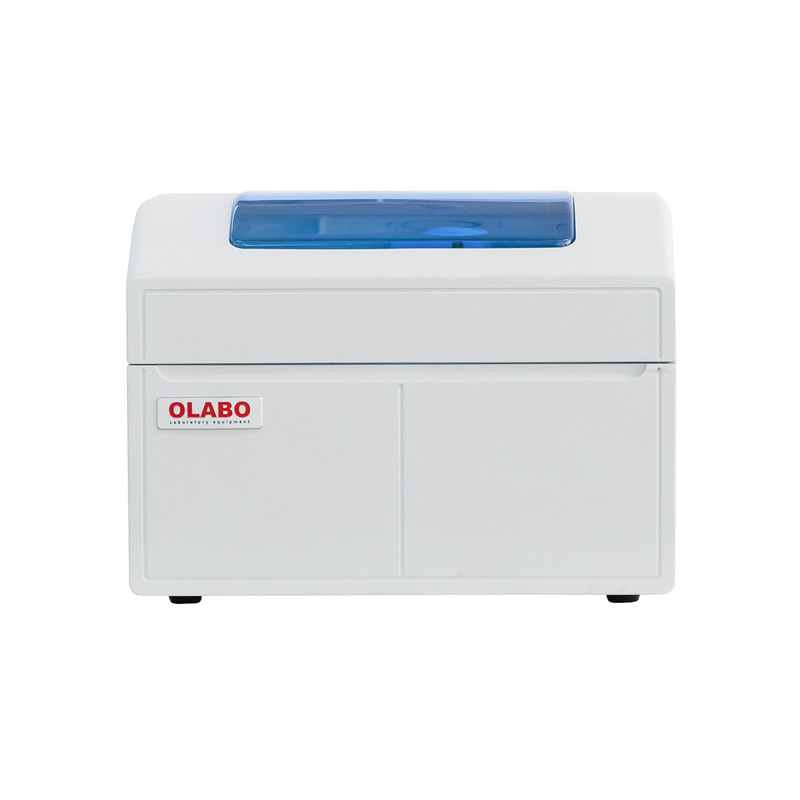

Product detail pictures:
