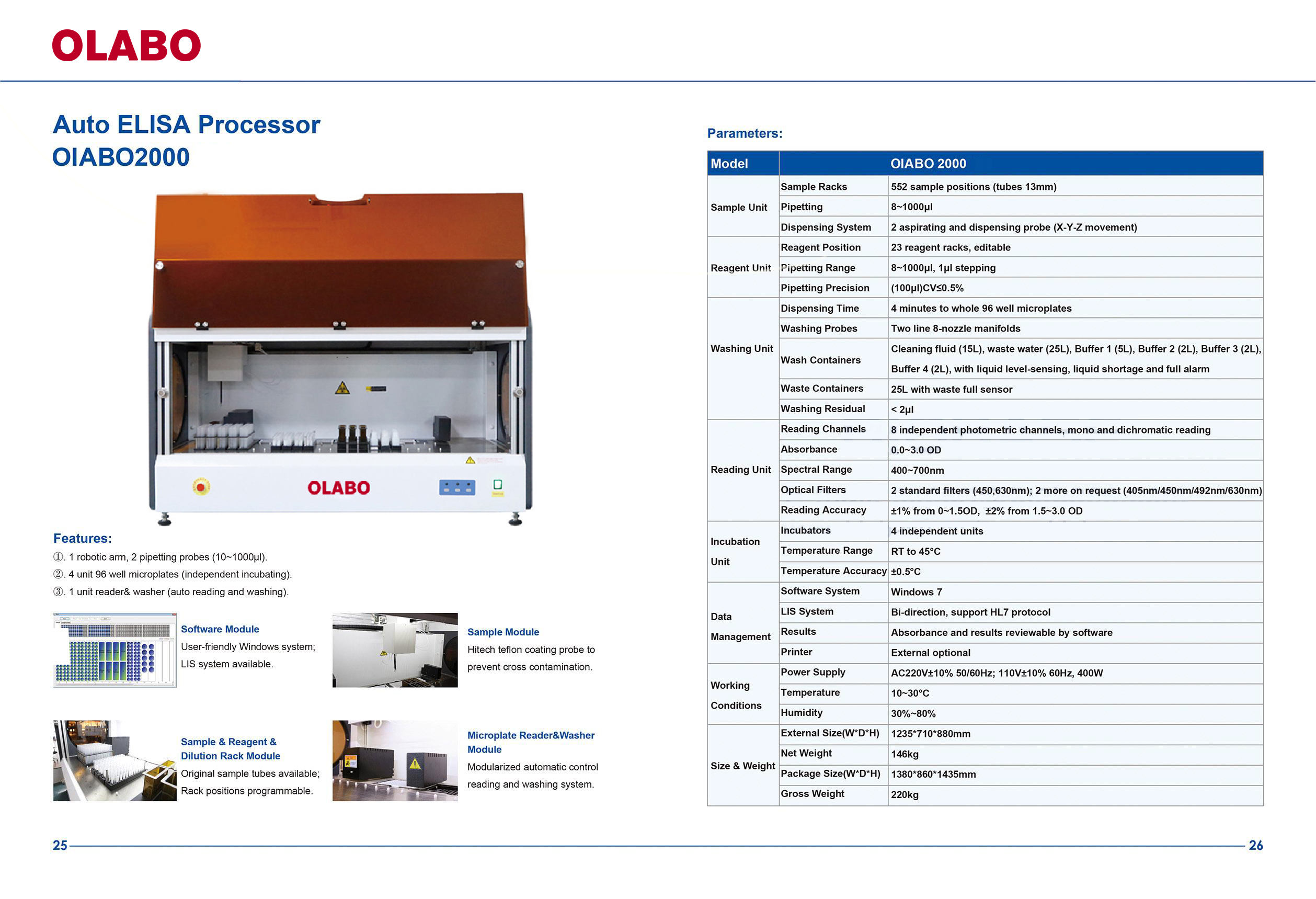

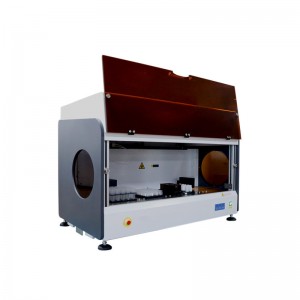

Auto ELISA Processor (OLABO2000)
Features:
1. 1 robotic arm, 2 pipetting probe(10~1000μl).
2. 4 unit 96 well microplates(independent incubating).
3. 1 unit reader& washer (auto reading and washing).
、
| Model | OLABO 2000 | |
| Sample Unit | Sample Racks | 552 sample positions(tubes 13mm) |
| Pipetting | 8~1000ul | |
| Dispensing system | 2 aspirating-dispensing probe( X-Y-Z movement) | |
| Reagent Unit | Reagent Position | 23 reagent racks, editable |
| Pipetting Range | 8~1000μl, 1ul stepping | |
| Pipetting Precision | (100ul )CV≤0.5% | |
| Washing Unit | Dispensing Time | 4 minutes to whole 96 to microplates |
| Washing Probes | Two line 8-nozzle manifolds | |
| Wash Containers | Cleaning fluid(15L),waste water(25L),Buffer 1(5L), Buffer 2(2L),Buffer 3(2L), Buffer 4(2L),
with liquid level-sensing, liquid shortage and full alarm |
|
| Waste Containers | 25L with waste full sensor | |
| Washing Residual | <2μl | |
| Reading Unit | Reading Channels | 8 independent photometric channels, monoanddichromatic reading |
| Absorbance | 0.0~3.0 OD | |
| Spectral Range | 400-700nm | |
| Optical Filters | 2standard filters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm) | |
| Reading Accuracy | ±1% from 0.0~1.5 OD, ±2% from 1.5 to 3.0 OD | |
| Incubation Unit | Incubators | 4independent units |
| Temperature Range | RT to 45℃ | |
| Temperature Accuracy | ±0.5℃ | |
| Data Management | Software System | Windows 7 |
| LIS System | Bi-direction,support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 400W |
| Temperature | 10～30℃ | |
| Humidity | 30-80% | |
| Size & Weight | External Size (W*D*H) | 1235*710*880mm |
| Net Weight | 146kg | |
| Package Size (W*D*H) | 1380*860*1435mm | |
| Gross Weight | 220kg | |
