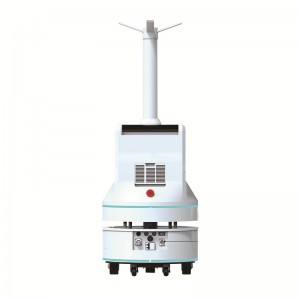

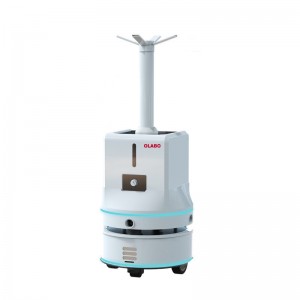

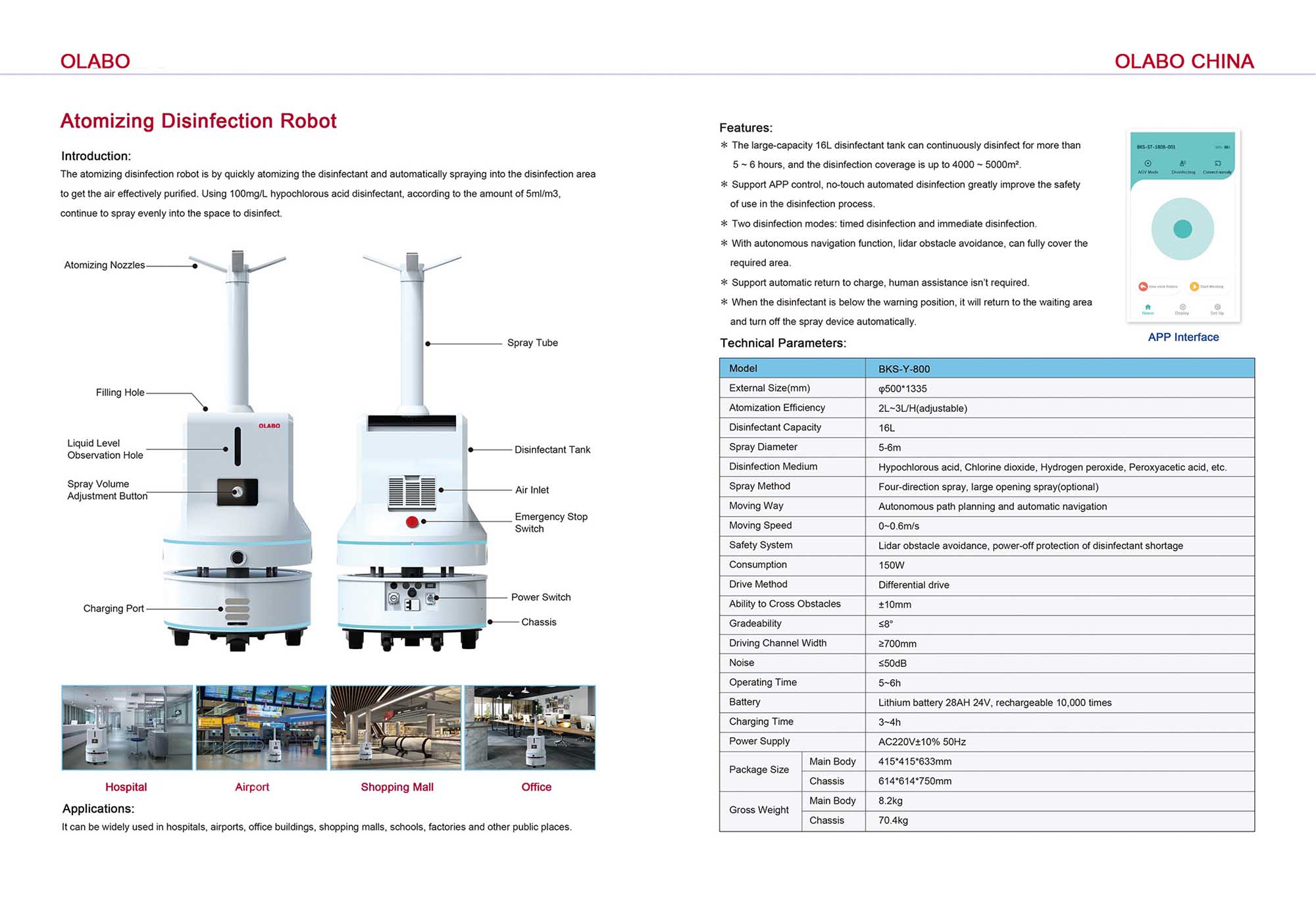

Atomizing Disinfection Robot
Parameter
| Model | BKS-Y-800 | |
| External Size(mm) | φ500*1335 | |
| Atomization Efficiency | 2L~3L/H(adjustable) | |
| Disinfectant Capacity | 16L | |
| Spray Diameter | 5-6m | |
| Disinfection Medium | Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc. | |
| Spray Method | Four-direction spray, large opening spray(optional) | |
| Moving Way | Autonomous path planning and automatic navigation | |
| Moving Speed | 0~0.6m/s | |
| Power Supply | AC220±10%V 50Hz | |
| Consumption | 150W | |
| Drive Method | Differential drive | |
| Ability to Cross Obstacles | ±10mm | |
| Gradeability | ≤8° | |
| Driving Channel Width | ≥700mm | |
| Noise | ≤50dB | |
| Operating Time | 5~6h | |
| Battery | Lithium battery 28AH 24V | |
| Charging Time | 3~4h | |
| Safety System | Lidar obstacle avoidance, power-off protection of disinfectant shortage | |
| Package Size | Main Body | 430*430*660mm |
| Chassis | 650*650*770mm | |
| Gross Weight | Main Body | 10kg |
| Chassis | 62kg | |
Application
The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect.
Features
● Support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.
● The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
● Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
● Two disinfection modes: timed disinfection and immediate disinfection.
● With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
● Support automatic return to charge, human assistance isn’t required.
● When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.
Download:
Atomizing Disinfection Robot
